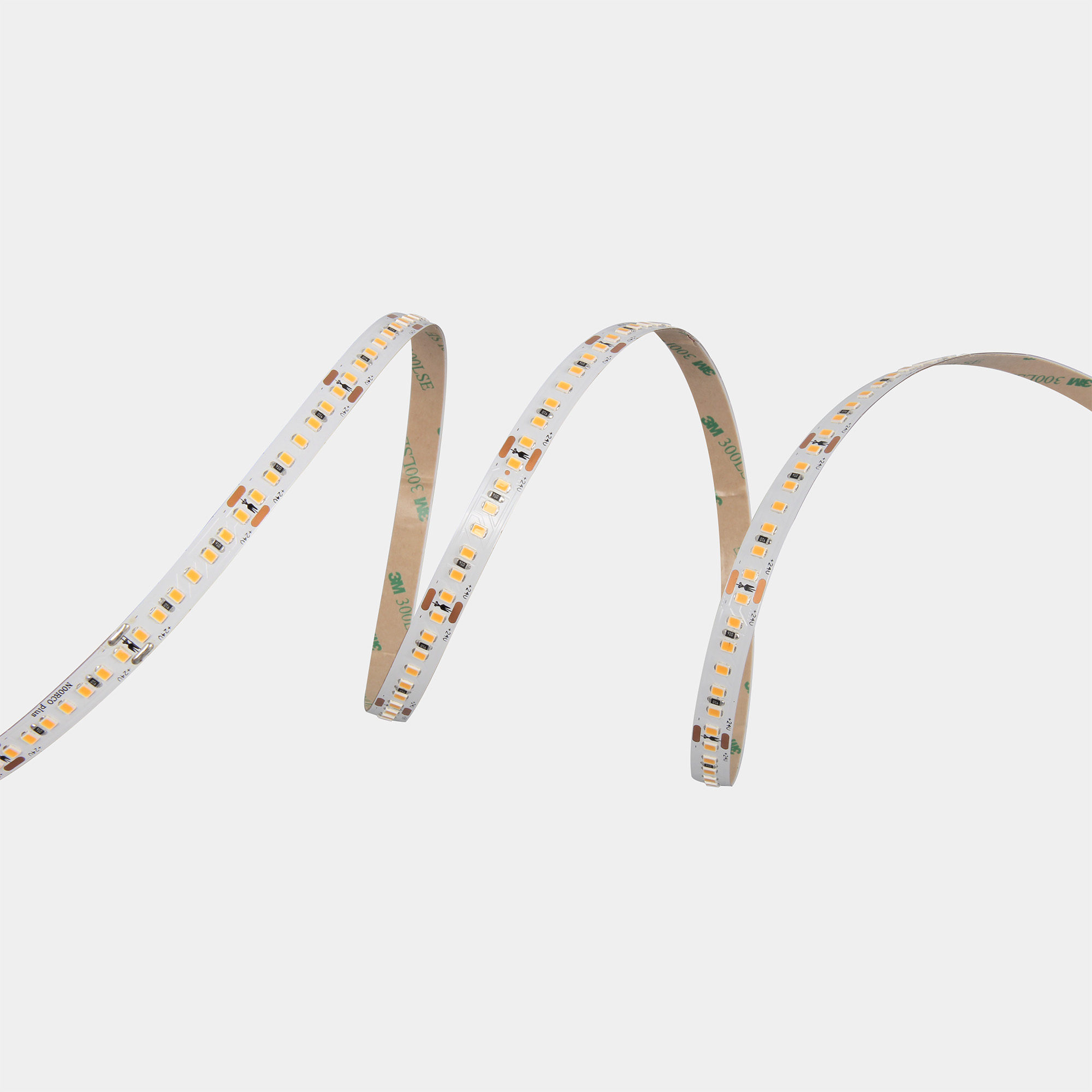

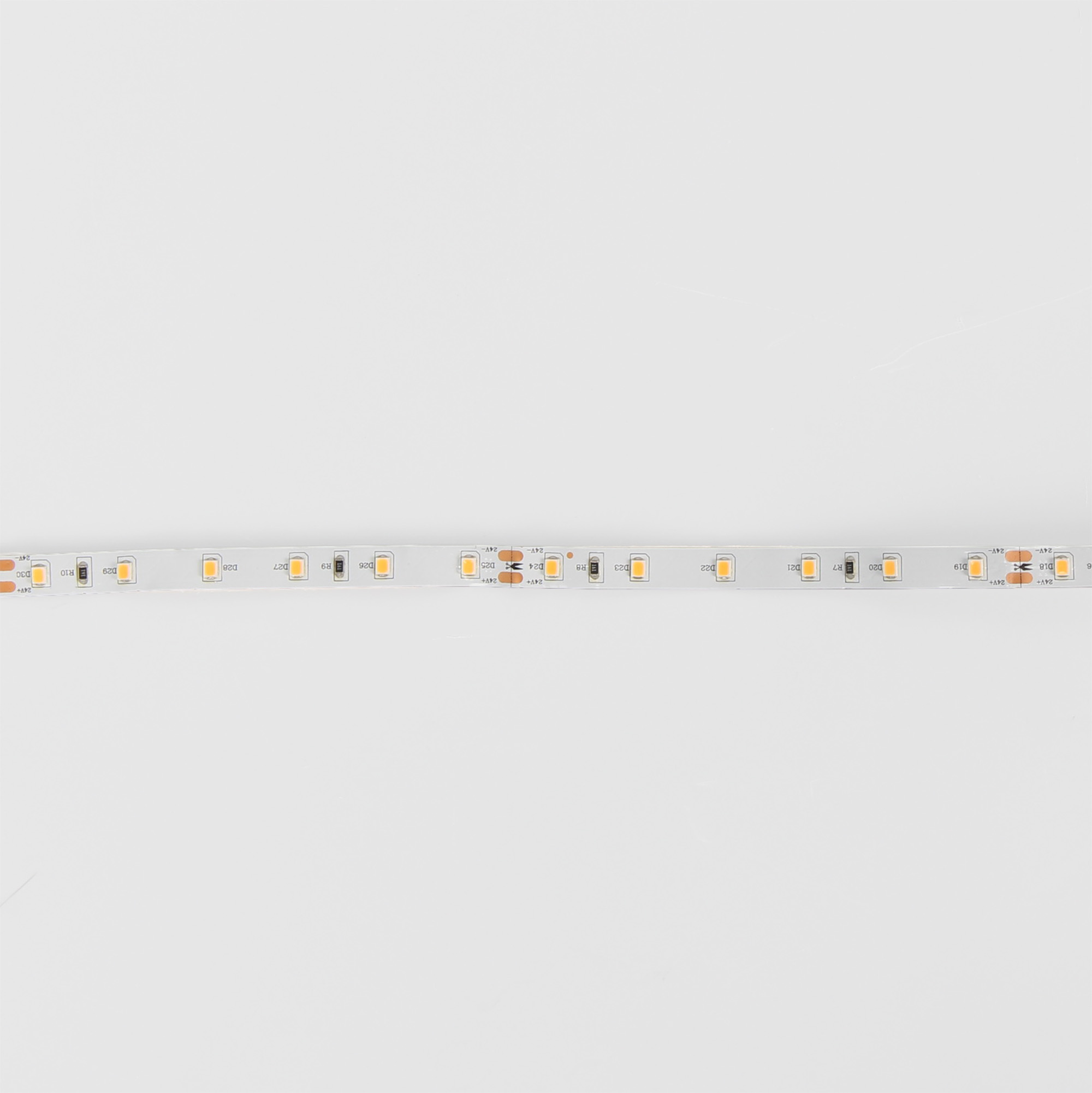

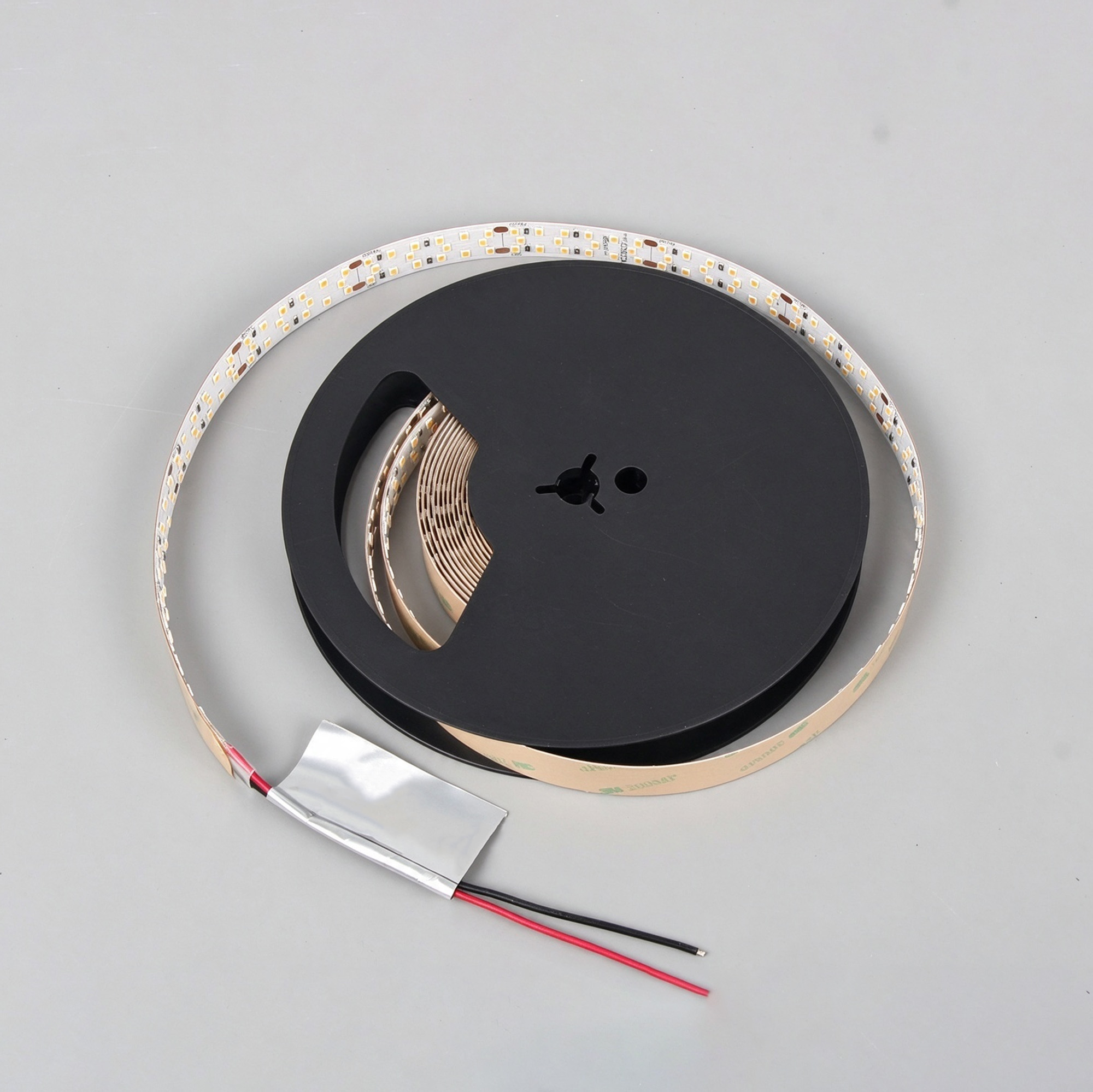

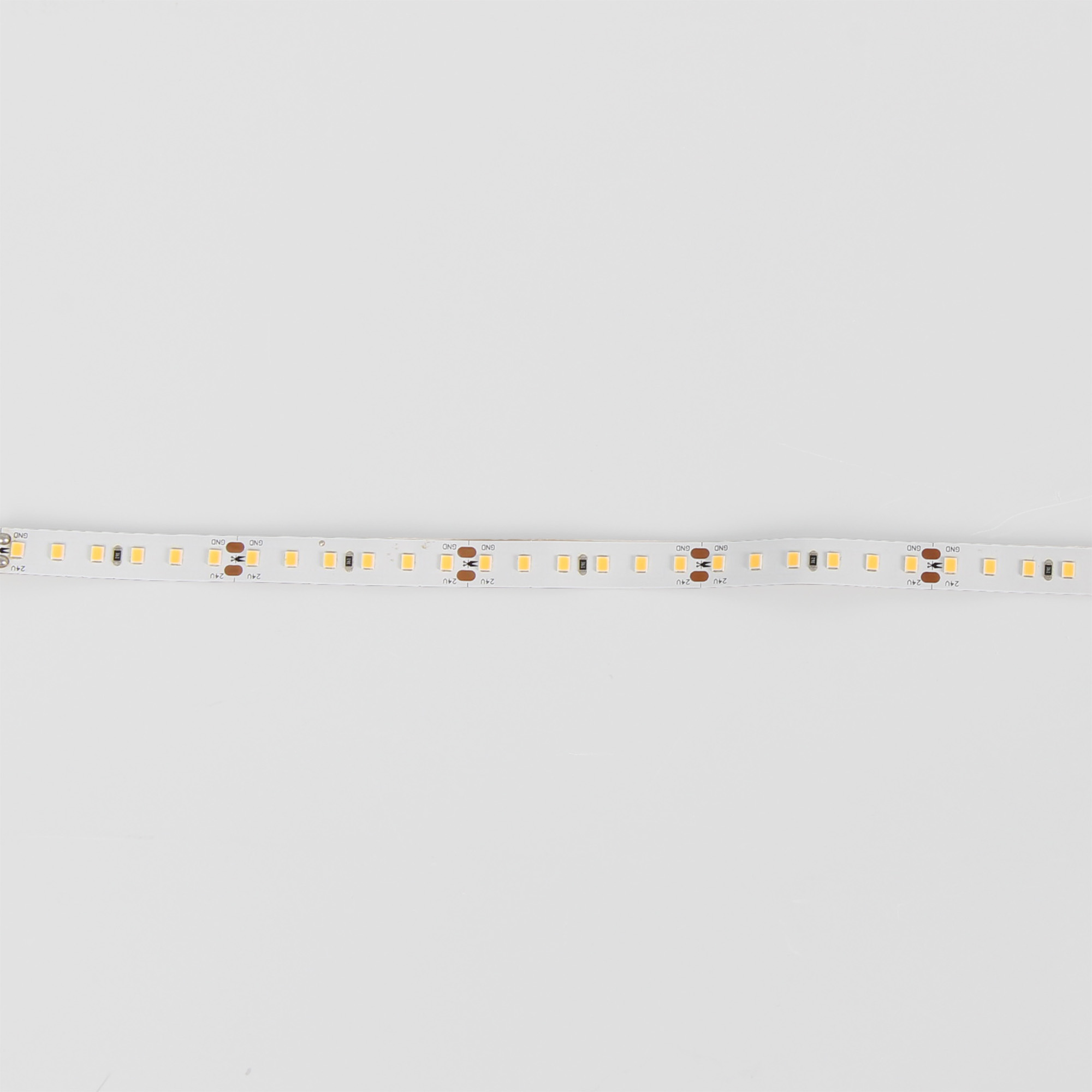

NR-ST24 Series
POWER (WATT)
9.0/5.0/23.0/14.0/20.0/19.0
IP RATING
IP20
CCT
3000K/4000K/2700K/RGB
BEAM ANGLE
120°
Ra
90/95/75
Technical Specifications Basic Parameters
Model No
NR-ST24 Series
Category
LED Strip Light
Installation Methods
Surface Mounted
Classes of Electrical Protection
Class III
IP Rating
IP20
ta
40°C
Input Voltage
DC24V
Frequency
Type of Chips
SMD
Watt
9.0/5.0/23.0/14.0/20.0/19.0
lm/w
66.0/90.0/110.0/104.0/99/55.0
Useful Lumen
594.0/450.0/2530.0/1456.0/1980/1045.0
CCT
3000K/4000K/2700K/RGB
Beam Angle
120°
Ra
90/95/75
PF
1.0
DF
1.0
Body Color
White
Product Main Material
Copper
Dimming or not
Non-Adjustable Light/Adjustable Light and Color
Cut hole (mm)
Guarantee
3/5
Directionality
Indirect
Product Size (mm)
5000*10*1.3/5000*8*1.3/5000*12*1.3/5000*18*1.3/5000*14*2
Energy efficiency QR included
Model Variants 4 beam options
| Item Code | New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NR-ST24-120-9W-3000K | NR-ST24B-60-9 WW | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | SMD | 9.0 | 66.0 | 594.0 | 3000K | 120° | 90 | 1.0 | 1.0 | White | Copper | Non-Adjustable Light | N/A | 3 | Indirect | 5000*10*1.3 |
| NR-ST24-120-9W-4000K | NR-ST24B-60-9 DW | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | SMD | 9.0 | 66.0 | 594.0 | 4000K | 120° | 90 | 1.0 | 1.0 | Copper | Non-Adjustable Light | N/A | 3 | Indirect | 5000*10*1.3 | |
| NR-ST24-60-5W-3000K | NR-ST24-5 WW | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | N/A | 5.0 | 90.0 | 450.0 | 3000K | 120° | 90 | 1.0 | 1.0 | White | Copper | Non-Adjustable Light | N/A | 3 | Indirect | 5000*8*1.3 |
| NR-ST24-60-5W-4000K | NR-ST24-5 DW | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | N/A | 5.0 | 90.0 | 450.0 | 4000K | 120° | 90 | 1.0 | 1.0 | White | Copper | Non-Adjustable Light | N/A | 3 | Indirect | 5000*8*1.3 |
| NRP-ST24-128-23W-3000K | NRP-ST24-23 WW | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | SMD | 23.0 | 110.0 | 2530.0 | 3000K | 120° | 90 | 1.0 | 1.0 | White | Copper | Non-Adjustable Light | N/A | 5 | Indirect | 5000*12*1.3 |
| NRP-ST24-128-23W-4000K | NRP-ST24-23 DW | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | SMD | 23.0 | 110.0 | 2530.0 | 4000K | 120° | 90 | 1.0 | 1.0 | White | Copper | Non-Adjustable Light | N/A | 5 | Indirect | 5000*12*1.3 |
| NRP-ST24-168-14W-3000K | NRP-ST24B-160-14 WW | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | SMD | 14.0 | 104.0 | 1456.0 | 3000K | 120° | 95 | 1.0 | 1.0 | White | Copper | Non-Adjustable Light | N/A | 5 | Indirect | 5000*10*1.3 |
| NRP-ST24-168-14W-4000K | NRP-ST24B-160-14 DW | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | SMD | 14.0 | 104.0 | 1456.0 | 4000K | 120° | 95 | 1.0 | 1.0 | White | Copper | Non-Adjustable Light | N/A | 5 | Indirect | 5000*10*1.3 |
| NRP-ST24-320-20W-2700K | NRP-ST24C-120-20 SW | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | SMD | 20.0 | 99 | 1980 | 2700K | 120° | 95 | 1.0 | 1.0 | White | Copper | Non-Adjustable Light | N/A | 5 | Indirect | 5000*18*1.3 |
| NRP-ST24-320-20W-3000K | NRP-ST24C-120-20 WW | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | SMD | 20.0 | 99 | 1980 | 3000K | 120° | 95 | 1.0 | 1.0 | White | Copper | Non-Adjustable Light | N/A | 5 | Indirect | 5000*18*1.3 |
| IP20 | NR-ST24C-60-RGBW-19 | LED Strip Light | Surface Mounted | Class III | IP20 | 40°C | DC24V | N/A | SMD | 19.0 | 55.0 | 1045.0 | RGB | 120° | 75 | 1.0 | 1.0 | White | Copper | Adjustable Light and Color | N/A | 3 | Indirect | 5000*14*2 |
