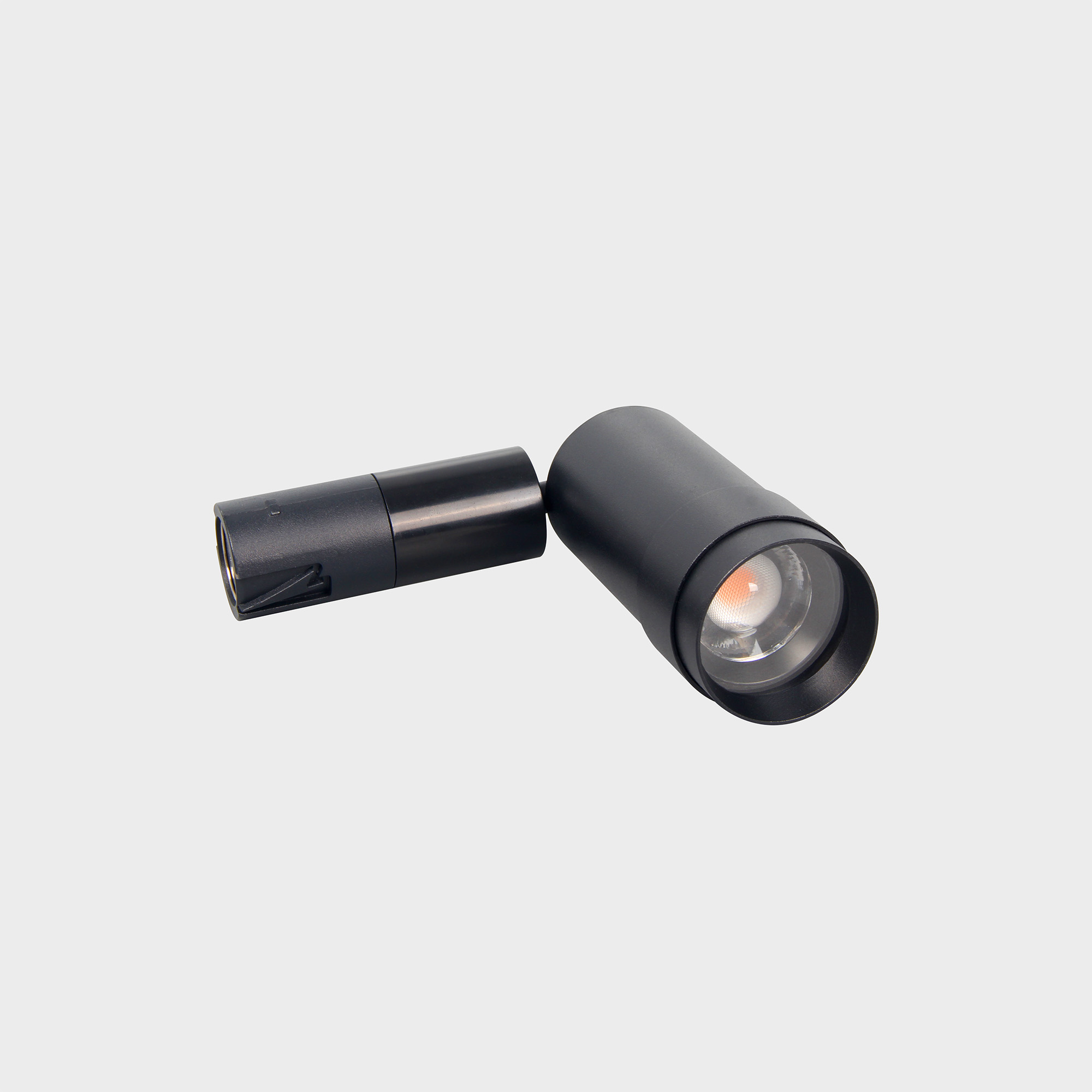

NRP-FD Series
POWER (WATT)
30.0/40.0/150.0/10.0/15.0/4.0/6.0/24.0
IP RATING
IP20
CCT
3000K/4000K
BEAM ANGLE
24°/90°/330°/120°/20°/36°/60°/30-60°
Ra
90
Technical Specifications Basic Parameters
Model No
NRP-FD Series
Category
LED Free Dot System
Installation Methods
Portable/Recessed
Classes of Electrical Protection
Class III/Class 0
IP Rating
IP20
ta
40°C
Input Voltage
DC48V
Frequency
Type of Chips
SMD/COB
Watt
30.0/40.0/150.0/10.0/15.0/4.0/6.0/24.0
lm/w
74.0/80.0/85.0/75.0/90.0/68.0/70.0/65.0/69.0/50.0/95.0/100.0/125.0/110.0/71.0
Useful Lumen
2220.0/3200.0/2960.0/2550.0/3400.0/0/750.0/1125.0/2250.0/300.0/450.0/2700.0/1350.0/680.0/700.0/1110.0/1776.0/260.0/414.0/200.0/540.0/272.0/510.0/570.0/600.0/1200.0/1875.0/480.0/660.0/850.0/420.0/710.0/1425.0/426.0/900.0
CCT
3000K/4000K
Beam Angle
24°/90°/330°/120°/20°/36°/60°/30-60°
Ra
90
PF
1.0
DF
1.0
Body Color
Black
Product Main Material
Aluminum/Aluminum + PC/Aluminum + Glass + PC
Dimming or not
Non-Adjustable Light
Cut hole (mm)
Φ50
Guarantee
5
Directionality
Direct/Indirect
Product Size (mm)
1191*22.5*950/1515*22.5*1000/1183*22.5*950/?*22.5*950/881*32*950/?*32*950/Φ60*110/435*23*116/651*23*116/1298*23*116/219.4*23*116/327.4*23*116/Φ32*2000/435.4*23*116/596*23*116/891*23*116/1183*23*116/327*23*116/Φ85*100-600/Φ100*100-600/Φ32*86/Φ22*2/890*32.5*122/300*32.5*122/Φ73*486-696/Φ32*1550/Φ32*1250/Φ52*225/Φ30*178/Φ50*210/342*32*142/642*32*142/126*32*142/234*32*142/235*83*120/642*83*120/126*83*120/1312*32*950/Φ90*113
Energy efficiency QR included
Model Variants 4 beam options
| Item Code | New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NRP-FD-DLA105-A-30-3000K | NRP-FLDL0901-30-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 74.0 | 2220.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | 1191*22.5*950 |
| NRP-FD-DLA105-A-40-3000K | NRP-FLDL0901-40-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 40.0 | 80.0 | 3200.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | 1515*22.5*1000 |
| NRP-FD-PLA105-A-30-3000K | NRP-FLPL0901-30-30K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 74.0 | 2220.0 | 3000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1183*22.5*950 |
| NRP-FD-PLA105-A-30-4000K | NRP-FLPL0901-30-40K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 74.0 | 2220.0 | 4000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1183*22.5*950 |
| NRP-FD-PLA105-A-40-3000K | NRP-FLPL0901-40-30K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 40.0 | 74.0 | 2960.0 | 3000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | ?*22.5*950 |
| NRP-FD-PLA105-A-40-4000K | NRP-FLPL0901-40-40K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 40.0 | 74.0 | 2960.0 | 4000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | ?*22.5*950 |
| NRP-FD-ZDDLA105-A-30-3000K | NRP-FFTL0951-30-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 74.0 | 2220.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | 881*32*950 |
| NRP-FD-ZDDLA105-A-30-4000K | NRP-FFTL0951-30-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 85.0 | 2550.0 | 4000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | 881*32*950 |
| NRP-FD-ZDDLA105-A-40-3000K | NRP-FFTL0951-40-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 40.0 | 80.0 | 3200.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | ?*32*950 |
| NRP-FD-ZDDLA105-A-40-4000K | NRP-FFTL0951-40-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 40.0 | 85.0 | 3400.0 | 4000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | ?*32*950 |
| NRP-FD-BASE-60 | NRP-FD-BASE-60 | LED Free Dot System | Recessed | Class III | IP20 | 40°C | DC48V | N/A | N/A | 150.0 | 0 | Black | Aluminum + PC | N/A | Φ50 | 5 | N/A | Φ60*110 | ||||||
| NRP-FD-DL105-10-3000K | NRP-FLDL0251-10-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 10.0 | 75.0 | 750.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 435*23*116 |
| NRP-FD-DL105-10-4000K | NRP-FLDL0251-10-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 10.0 | 75.0 | 750.0 | 4000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 435*23*116 |
| NRP-FD-DL105-15-3000K | NRP-FLDL0301-15-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 15.0 | 75.0 | 1125.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 651*23*116 |
| NRP-FD-DL105-15-4000K | NRP-FLDL0301-15-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 15.0 | 75.0 | 1125.0 | 4000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 651*23*116 |
| NRP-FD-DL105-30-3000K | NRP-FLDL0301-30-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 75.0 | 2250.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 1298*23*116 |
| NRP-FD-DL105-30-4000K | NRP-FLDL0301-30-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 75.0 | 2250.0 | 4000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 1298*23*116 |
| NRP-FD-DL105-4-3000K | NRP-FLDL0251-4-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 4.0 | 75.0 | 300.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 219.4*23*116 |
| NRP-FD-DL105-4-4000K | NRP-FLDL0251-4-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 4.0 | 75.0 | 300.0 | 4000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 219.4*23*116 |
| NRP-FD-DL105-6-3000K | NRP-FLDL0251-6-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 6.0 | 75.0 | 450.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 327.4*23*116 |
| NRP-FD-DL105-6-4000K | NRP-FLDL0251-6-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 6.0 | 75.0 | 450.0 | 4000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 327.4*23*116 |
| NRP-FD-DLA105-30-3000K | NRP-FLDL0851-30-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 74.0 | 2220.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 1191*22.5*950 |
| NRP-FD-DLA105-30-4000K | NRP-FLDL0851-30-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 90.0 | 2700.0 | 4000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Direct | 1191*22.5*950 |
| NRP-FD-MST105-2M-3000K | NRP-FST0801-15-30K | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 15.0 | 90.0 | 1350.0 | 330° | Φ32*2000 | |||||||||||
| NRP-FD-PL105-10-3000K | NRP-FLPL0401-10-30K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 10.0 | 68.0 | 680.0 | 3000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 435.4*23*116 |
| NRP-FD-PL105-10-4000K | NRP-FLPL0401-10-40K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 10.0 | 70.0 | 700.0 | 4000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 435.4*23*116 |
| NRP-FD-PL105-15-3000K | NRP-FLPL0401-15-30K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 15.0 | 74.0 | 1110.0 | 3000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 596*23*116 |
| NRP-FD-PL105-15-4000K | NRP-FLPL0401-15-40K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 15.0 | 74.0 | 1110.0 | 4000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 596*23*116 |
| NRP-FD-PL105-24-3000K | NRP-FLPL0401-24-30K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 24.0 | 74.0 | 1776.0 | 3000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 891*23*116 |
| NRP-FD-PL105-24-4000K | NRP-FLPL0401-24-40K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 24.0 | 74.0 | 1776.0 | 4000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 891*23*116 |
| NRP-FD-PL105-30-3000K | NRP-FLPL0401-30-30K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 74.0 | 2220.0 | 3000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 1183*23*116 |
| NRP-FD-PL105-30-4000K | NRP-FLPL0401-30-40K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 74.0 | 2220.0 | 4000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 1183*23*116 |
| NRP-FD-PL105-4-3000K | NRP-FLPL0401-4-30K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 4.0 | 65.0 | 260.0 | 3000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 219.4*23*116 |
| NRP-FD-PL105-4-4000K | NRP-FLPL0401-4-40K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 4.0 | 65.0 | 260.0 | 4000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 219.4*23*116 |
| NRP-FD-PL105-6-3000K | NRP-FLPL0401-6-30K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 6.0 | 69.0 | 414.0 | 3000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 327*23*116 |
| NRP-FD-PL105-6-4000K | NRP-FLPL0401-6-40K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 6.0 | 69.0 | 414.0 | 4000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum + PC | Non-Adjustable Light | N/A | 5 | Indirect | 327*23*116 |
| NRP-FD-PLA105-30-3000K | NRP-FLPL0851-30-30K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 74.0 | 2220.0 | 3000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1183*22.5*950 |
| NRP-FD-PLA105-30-4000K | NRP-FLPL0851-30-40K-BK-90D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 74.0 | 2220.0 | 4000K | 90° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1183*22.5*950 |
| NRP-FD-PNG105-4-3000K | NRP-FCL0601-4-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | COB | 4.0 | 50.0 | 200.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum + Glass + PC | Non-Adjustable Light | N/A | 5 | Direct | Φ85*100-600 |
| NRP-FD-PNG105-6-3000K | NRP-FCL0651-6-30K-BK-120D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 6.0 | 90.0 | 540.0 | 3000K | 120° | 90 | 1.0 | 1.0 | Black | Aluminum + Glass + PC | Non-Adjustable Light | N/A | 5 | Indirect | Φ100*100-600 |
| NRP-FD-SL105-4-20°-3000K | NRP-FSL0101-4-30K-BK-20D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | COB | 4.0 | 68.0 | 272.0 | 3000K | 20° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | Φ32*86 |
| NRP-FD-SL105-4-36°-3000K | NRP-FSL0101-4-30K-BK-36D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | COB | 4.0 | 68.0 | 272.0 | 3000K | 36° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | Φ32*86 |
| NRP-FD-SL105-4-36°-4000K | NRP-FSL0101-4-40K-BK-36D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | COB | 4.0 | 68.0 | 272.0 | 4000K | 36° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | Φ32*86 |
| NRP-FD-SL105-6-20°-3000K | NRP-FSL0101-6-30K-BK-20D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | COB | 6.0 | 85.0 | 510.0 | 3000K | 20° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | Φ32*86 |
| NRP-FD-SL105-6-60°-3000K | NRP-FSL0101-6-30K-BK-60D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | COB | 6.0 | 95.0 | 570.0 | 3000K | 60° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | Φ32*86 |
| NRP-FD-SL105-6-60°-4000K | NRP-FSL0101-6-40K-BK-60D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | COB | 6.0 | 100.0 | 600.0 | 4000K | 60° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | Φ32*86 |
| NRP-FSL-ACS-ANTI | NRP-FSL-ACS-ANTI | LED Free Dot System | Portable | Class 0 | IP20 | 40°C | N/A | N/A | 0 | N/A | N/A | N/A | Black | Aluminum | N/A | N/A | 5 | N/A | Φ22*2 | |||||
| NRP-FD-TB105-15-3000K | NRP-FTB0851-15-30K-BK-120D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 15.0 | 80.0 | 1200.0 | 120° | 90 | 1.0 | 1.0 | 890*32.5*122 | ||||||||
| NRP-FD-TB105-15-4000K | NRP-FTB0851-15-40K-BK-120D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 15.0 | 125.0 | 1875.0 | 120° | 90 | 1.0 | 1.0 | 890*32.5*122 | ||||||||
| NRP-FD-TB105-6-3000K | NRP-FTB0851-6-30K-BK-120D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 6.0 | 80.0 | 480.0 | 120° | 90 | 1.0 | 1.0 | 300*32.5*122 | ||||||||
| NRP-FD-TB105-6-4000K | NRP-FTB0851-6-40K-BK-120D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 6.0 | 110.0 | 660.0 | 120° | 90 | 1.0 | 1.0 | 300*32.5*122 | ||||||||
| NRP-FD-TBF105-6-3000K | NRP-FSL0701-6-30K-BK-60D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 6.0 | 50.0 | 300.0 | 60° | Φ73*486-696 | |||||||||||
| NRP-FD-TBT105-10-3000K | NRP-FCL0751-10-30K-BK-120D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 10.0 | 85.0 | 850.0 | Φ32*1550 | ||||||||||||
| NRP-FD-TBT105-6-3000K | NRP-FCL0751-6-30K-BK-120D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 6.0 | 70.0 | 420.0 | Φ32*1250 | ||||||||||||
| NRP-FD-TL105-10-20°-3000K | NRP-FDL0201-10-30K-BK-20D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 10.0 | 85.0 | 850.0 | 20° | Φ52*225 | |||||||||||
| NRP-FD-TL105-10-36°-3000K | NRP-FDL0201-10-30K-BK-36D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 10.0 | 71.0 | 710.0 | 36° | 90 | 1.0 | 1.0 | Black | Non-Adjustable Light | Φ52*225 | ||||||
| NRP-FD-TL105-4-20°-3000K | NRP-FDL0201-4-30K-BK-20D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 4.0 | 68.0 | 272.0 | Φ30*178 | ||||||||||||
| NRP-FD-TL105-4-36°-3000K | NRP-FDL0201-4-30K-BK-36D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 4.0 | 68.0 | 272.0 | Φ30*178 | ||||||||||||
| NRP-FD-TL105-6-CLB80-3000K | NRP-FDL0151-6-30K-BK-30D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 6.0 | 75.0 | 450.0 | 3000K | 30-60° | 90 | 1.0 | 1.0 | Black | Non-Adjustable Light | 5 | Φ50*210 | ||||
| NRP-FD-TL105-6-CLB80-4000K | NRP-FDL0151-6-40K-BK-30D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 6.0 | 75.0 | 450.0 | 4000K | 30-60° | 90 | 1.0 | 1.0 | Black | Non-Adjustable Light | 5 | Φ50*210 | ||||
| NRP-FD-TRM-70 | NRP-FD-TRM-70 | LED Free Dot System | Recessed | Class III | IP20 | 40°C | DC48V | N/A | 0 | |||||||||||||||
| NRP-FD-ZD105-10-3000K | NRP-FFTL0502-10-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 10.0 | 75.0 | 750.0 | 342*32*142 | ||||||||||||
| NRP-FD-ZD105-10-4000K | NRP-FFTL0502-10-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 10.0 | 85.0 | 850.0 | 342*32*142 | ||||||||||||
| NRP-FD-ZD105-15-3000K | NRP-FFTL0502-15-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 15.0 | 90.0 | 1350.0 | 642*32*142 | ||||||||||||
| NRP-FD-ZD105-15-4000K | NRP-FFTL0502-15-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 15.0 | 95.0 | 1425.0 | 642*32*142 | ||||||||||||
| NRP-FD-ZD105-4-3000K | NRP-FFTL0502-4-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 4.0 | 68.0 | 272.0 | 126*32*142 | ||||||||||||
| NRP-FD-ZD105-4-4000K | NRP-FFTL0502-4-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 4.0 | 68.0 | 272.0 | 126*32*142 | ||||||||||||
| NRP-FD-ZD105-6-3000K | NRP-FFTL0502-6-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 6.0 | 69.0 | 414.0 | 234*32*142 | ||||||||||||
| NRP-FD-ZD105-6-4000K | NRP-FFTL0503-6-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 6.0 | 71.0 | 426.0 | 234*32*142 | ||||||||||||
| NRP-FD-ZDD105-10-3000K | NRP-FDDL0501-10-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 10.0 | 85.0 | 850.0 | 24° | 90 | 235*83*120 | ||||||||||
| NRP-FD-ZDD105-10-4000K | NRP-FDDL0501-10-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 10.0 | 90.0 | 900.0 | 24° | 90 | 235*83*120 | ||||||||||
| NRP-FD-ZDD105-15-3000K | NRP-FDDL0501-15-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 15.0 | 90.0 | 1350.0 | 24° | 90 | 642*83*120 | ||||||||||
| NRP-FD-ZDD105-15-4000K | NRP-FDDL0501-15-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 15.0 | 95.0 | 1425.0 | 24° | 90 | 642*83*120 | ||||||||||
| NRP-FD-ZDD105-6-3000K | NRP-FDDL0501-6-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 6.0 | 75.0 | 450.0 | 24° | 90 | 126*83*120 | ||||||||||
| NRP-FD-ZDD105-6-4000K | NRP-FDDL0501-6-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | 6.0 | 80.0 | 480.0 | 24° | 90 | 126*83*120 | ||||||||||
| NRP-FD-ZDDLA105-30-3000K | NRP-FFTL0901-30-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 74.0 | 2220.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | 881*32*950 |
| NRP-FD-ZDDLA105-30-4000K | NRP-FFTL0901-30-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 30.0 | 85.0 | 2550.0 | 4000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | 881*32*950 |
| NRP-FD-ZDDLA105-40-3000K | NRP-FFTL0901-40-30K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 40.0 | 80.0 | 3200.0 | 3000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | 1312*32*950 |
| NRP-FD-ZDDLA105-40-4000K | NRP-FFTL0901-40-40K-BK-24D | LED Free Dot System | Portable | Class III | IP20 | 40°C | DC48V | N/A | SMD | 40.0 | 85.0 | 3400.0 | 4000K | 24° | 90 | 1.0 | 1.0 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Direct | 1312*32*950 |
| NRP-FD-TRM-90-A | NRP-FD-TRM-90-A | LED Free Dot System | Recessed | Class 0 | IP20 | 40°C | N/A | N/A | 0 | N/A | N/A | N/A | Black | N/A | Φ50 | 5 | N/A | Φ90*113 |
