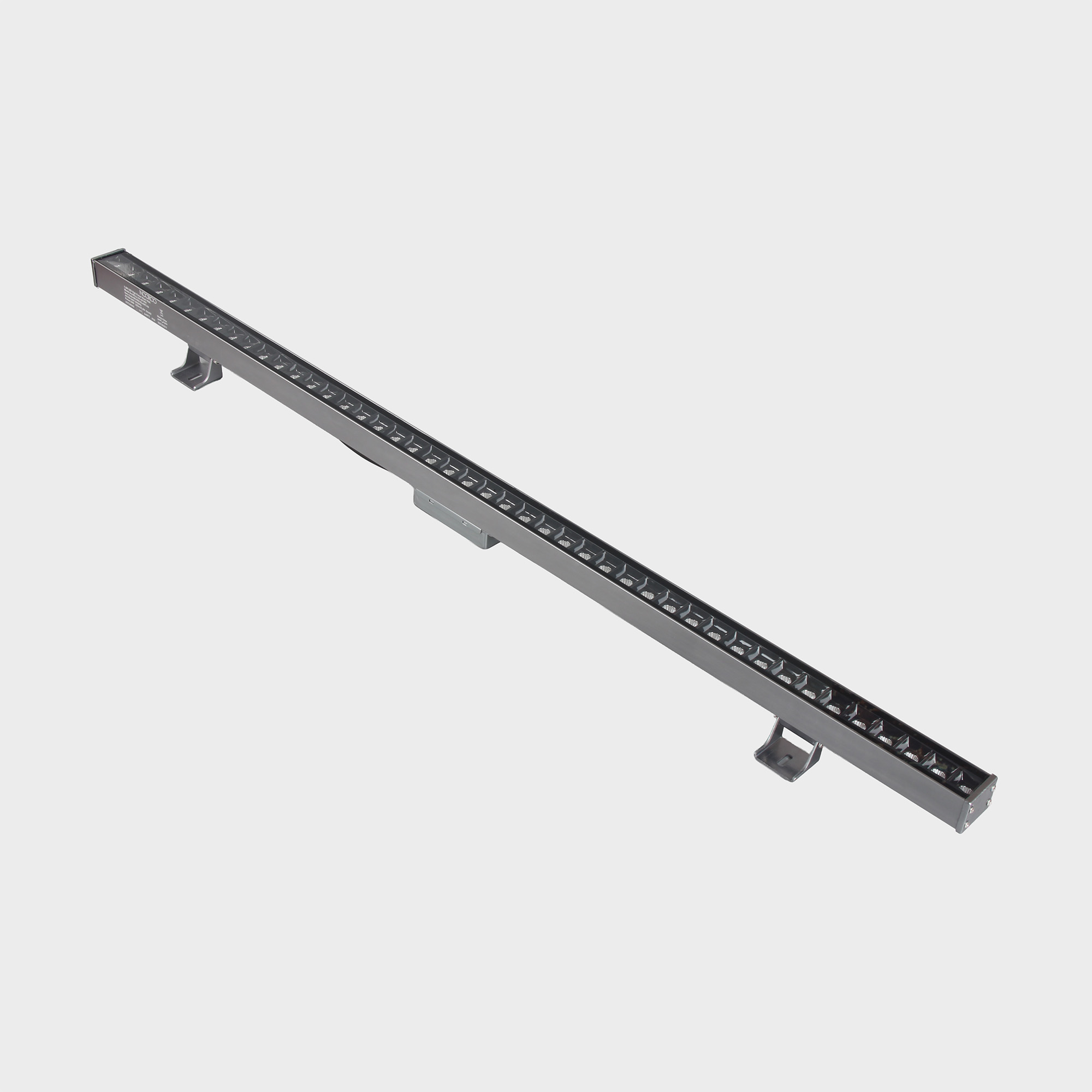

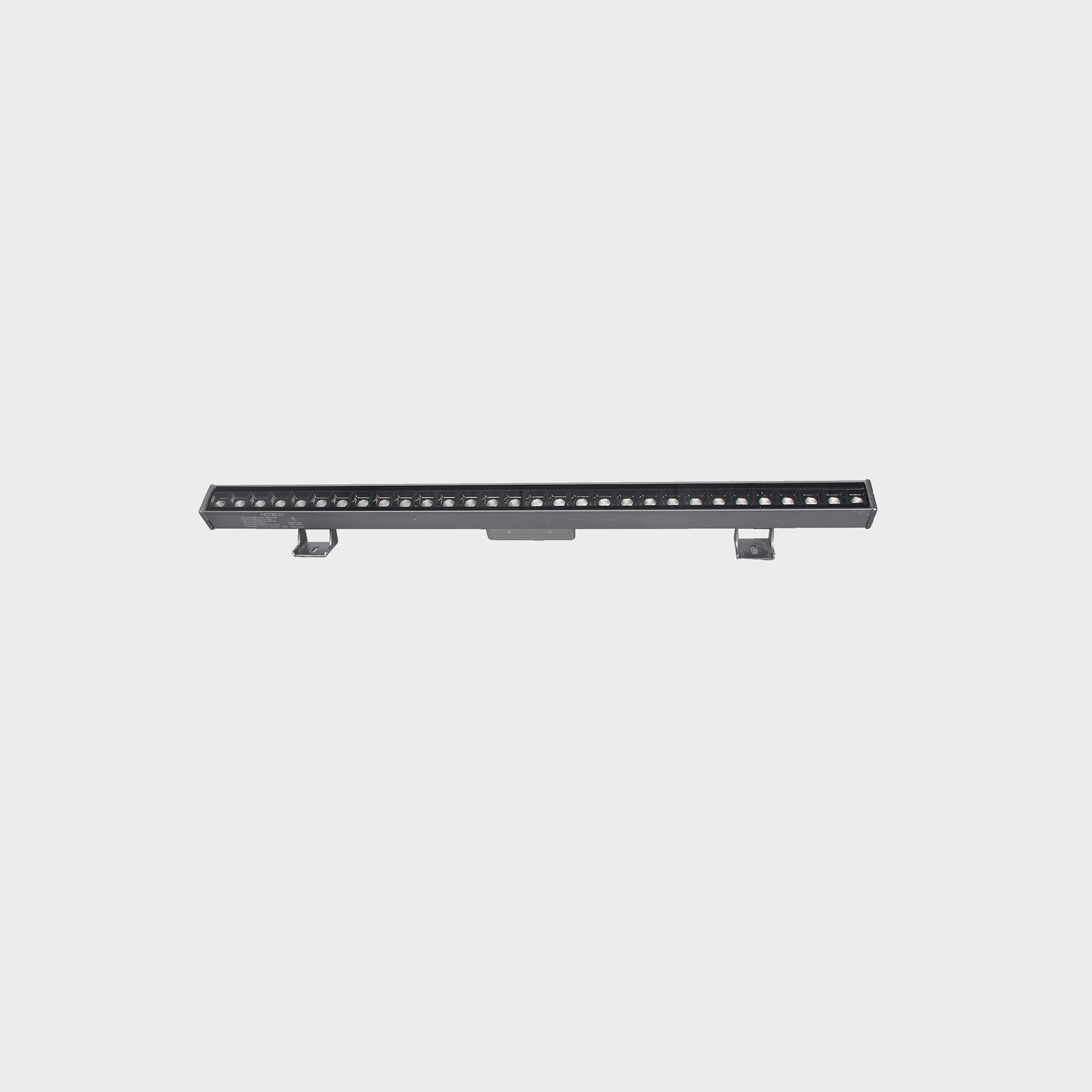

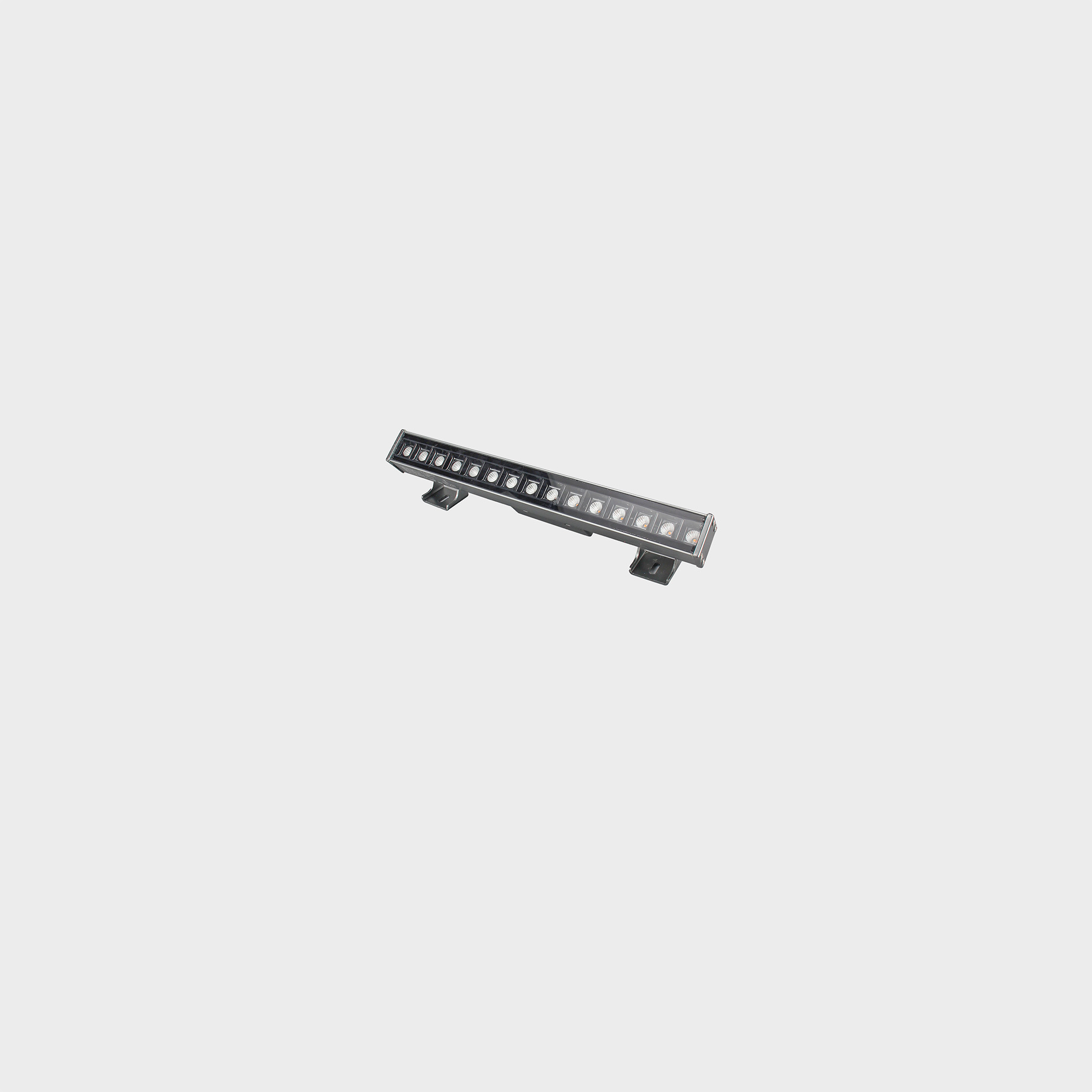

NR-WS102 Series
POWER (WATT)
24.0/12.0/36.0/70.0
IP RATING
IP65
CCT
3000K
BEAM ANGLE
24°
Ra
80
Technical Specifications Basic Parameters
Model No
NR-WS102 Series
Category
1.2M LED High Power Wash Wall light/0.4M LED High Power Wash Wall light/0.8M LED High Power Wash Wall light
Installation Methods
Surface Mounted
Classes of Electrical Protection
Class I
IP Rating
IP65
ta
50°C
Input Voltage
AC220-240V
Frequency
Hz
Type of Chips
SMD
Watt
24.0/12.0/36.0/70.0
lm/w
74.0/90.0/80.0/65.0
Useful Lumen
1776.0/1080.0/1920.0/2664.0/5180.0/780.0
CCT
3000K
Beam Angle
24°
Ra
80
PF
0.5/0.9
DF
0.7/0.9
Body Color
Silver
Product Main Material
Aluminum
Dimming or not
Non-Adjustable Light
Cut hole (mm)
Guarantee
3
Directionality
Direct
Product Size (mm)
1200*46*38/400*46*38/800*46*38
Energy efficiency QR included
Model Variants 4 beam options
| Item Code | New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NR-WS102-ANTI-1.2M-24-3000K | NR-WWL0101-24-30K-SL-30D | 1.2M LED High Power Wash Wall light | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 24.0 | 74.0 | 1776.0 | 3000K | 24° | 80 | 0.5 | 0.7 | Silver | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 1200*46*38 |
| NR-WS102-ANTI-12-3000K | NR-WWL0101-12-30K-SL-24D | 0.4M LED High Power Wash Wall light | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 12.0 | 90.0 | 1080.0 | 3000K | 24° | 80 | 0.5 | 0.7 | Silver | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 400*46*38 |
| NR-WS102-ANTI-24-3000K | NR-WWL0001-24-30K-SL-24D | 0.8M LED High Power Wash Wall light | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 24.0 | 80.0 | 1920.0 | 3000K | 24° | 80 | 0.5 | 0.7 | Silver | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 800*46*38 |
| NR-WS102-ANTI-36-3000K | NR-WWL0001-36-30K-SL-24D | 1.2M LED High Power Wash Wall light | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 36.0 | 74.0 | 2664.0 | 3000K | 24° | 80 | 0.9 | 0.9 | Silver | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 1200*46*38 |
| NR-WS102-ANTI-70-3000K | NR-WWL0001-70-30K-SL-24D | 1.2M LED High Power Wash Wall light | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 70.0 | 74.0 | 5180.0 | 3000K | 24° | 80 | 0.9 | 0.9 | Silver | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 1200*46*38 |
| NR-WS102-ANTI-80CM-12-3000K | NR-WWL0101-12-30K-SL-30D | 0.8M LED High Power Wash Wall light | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 12.0 | 65.0 | 780.0 | 3000K | 24° | 80 | 0.5 | 0.7 | Silver | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 800*46*38 |
