NR-LGW Series
POWER (WATT)
8.0/5.0
IP RATING
IP65
CCT
K-1900K-2400K/K-3000K-4000K
BEAM ANGLE
120°
Ra
85/90
Technical Specifications Basic Parameters
Model No
NR-LGW Series
Category
LED Outdoor Wall Lamp
Installation Methods
Surface Mounted
Classes of Electrical Protection
Class I
IP Rating
IP65
ta
50°C
Input Voltage
AC220-240V
Frequency
Hz
Type of Chips
SMD
Watt
8.0/5.0
lm/w
37.0/49.0
Useful Lumen
296.0/245.0
CCT
K-1900K-2400K/K-3000K-4000K
Beam Angle
120°
Ra
85/90
PF
0.9
DF
0.7
Body Color
Amber + Brown/Black
Product Main Material
Aluminum + Glass
Dimming or not
Adjustable Color
Cut hole (mm)
Guarantee
3
Directionality
Indirect
Product Size (mm)
Φ130*65/Φ110*60
Energy efficiency QR included

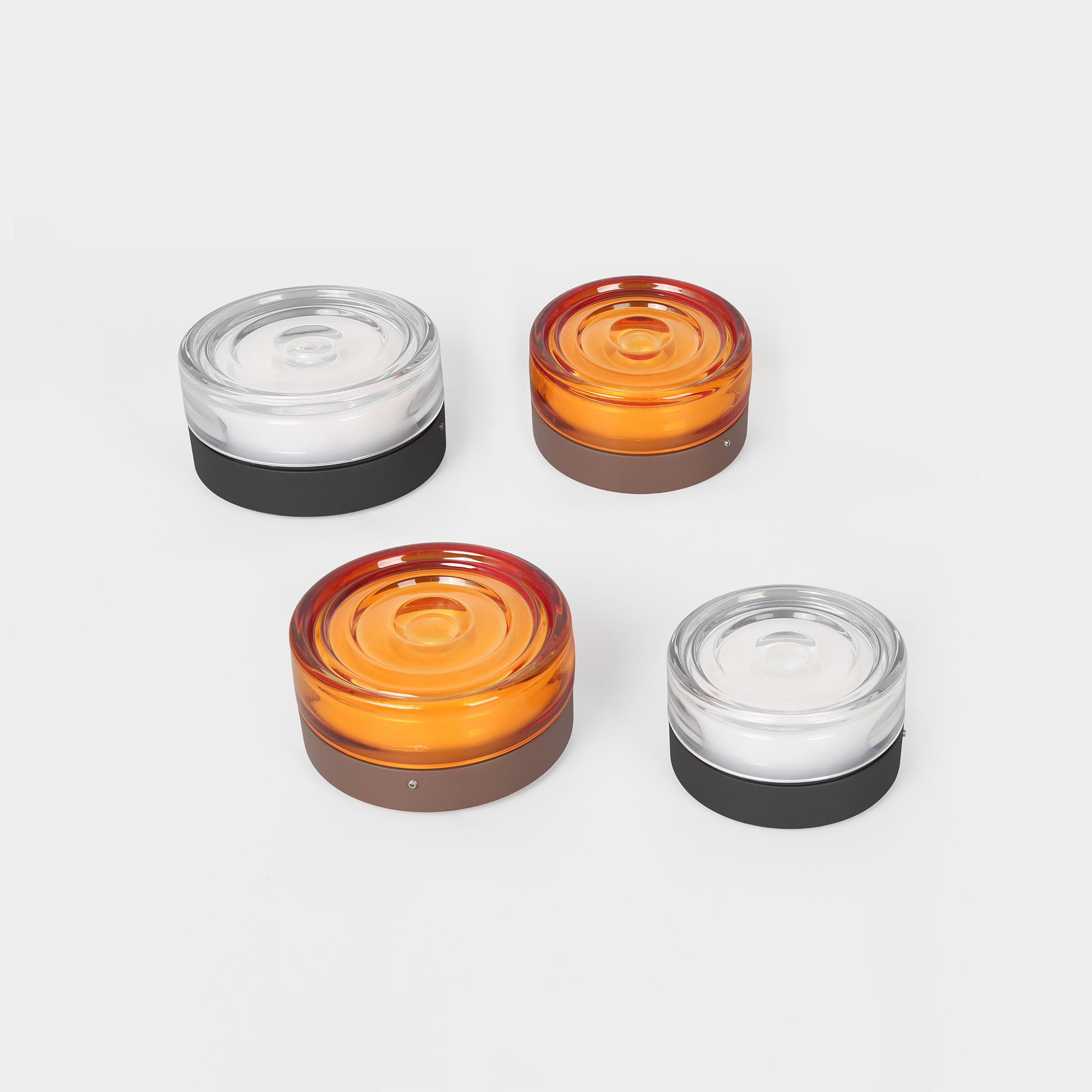

Model Variants 4 beam options
| Item Code | New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NR-LGW-0808-AB | NR-OWL0002-8-892K-AB-120D | LED Outdoor Wall Lamp | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 8.0 | 37.0 | 296.0 | K-1900K-2400K | 120° | 85 | 0.9 | 0.7 | Amber + Brown | Aluminum + Glass | Adjustable Color | 3 | Indirect | Φ130*65 | |
| NR-LGW-0808-BK | NR-OWL0002-8-234K-BK-120D | LED Outdoor Wall Lamp | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 8.0 | 37.0 | 296.0 | K-3000K-4000K | 120° | 90 | 0.9 | 0.7 | Black | Aluminum + Glass | Adjustable Color | 3 | Indirect | Φ130*65 | |
| NR-LGW-0805-AB | NR-OWL0002-5-892K-AB-120D | LED Outdoor Wall Lamp | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 5.0 | 49.0 | 245.0 | K-1900K-2400K | 120° | 85 | 0.9 | 0.7 | Amber + Brown | Aluminum + Glass | Adjustable Color | 3 | Indirect | Φ110*60 | |
| NR-LGW-0805-BK | NR-OWL0002-5-234K-BK-120D | LED Outdoor Wall Lamp | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 5.0 | 49.0 | 245.0 | K-3000K-4000K | 120° | 90 | 0.9 | 0.7 | Black | Aluminum + Glass | Adjustable Color | 3 | Indirect | Φ110*60 |
