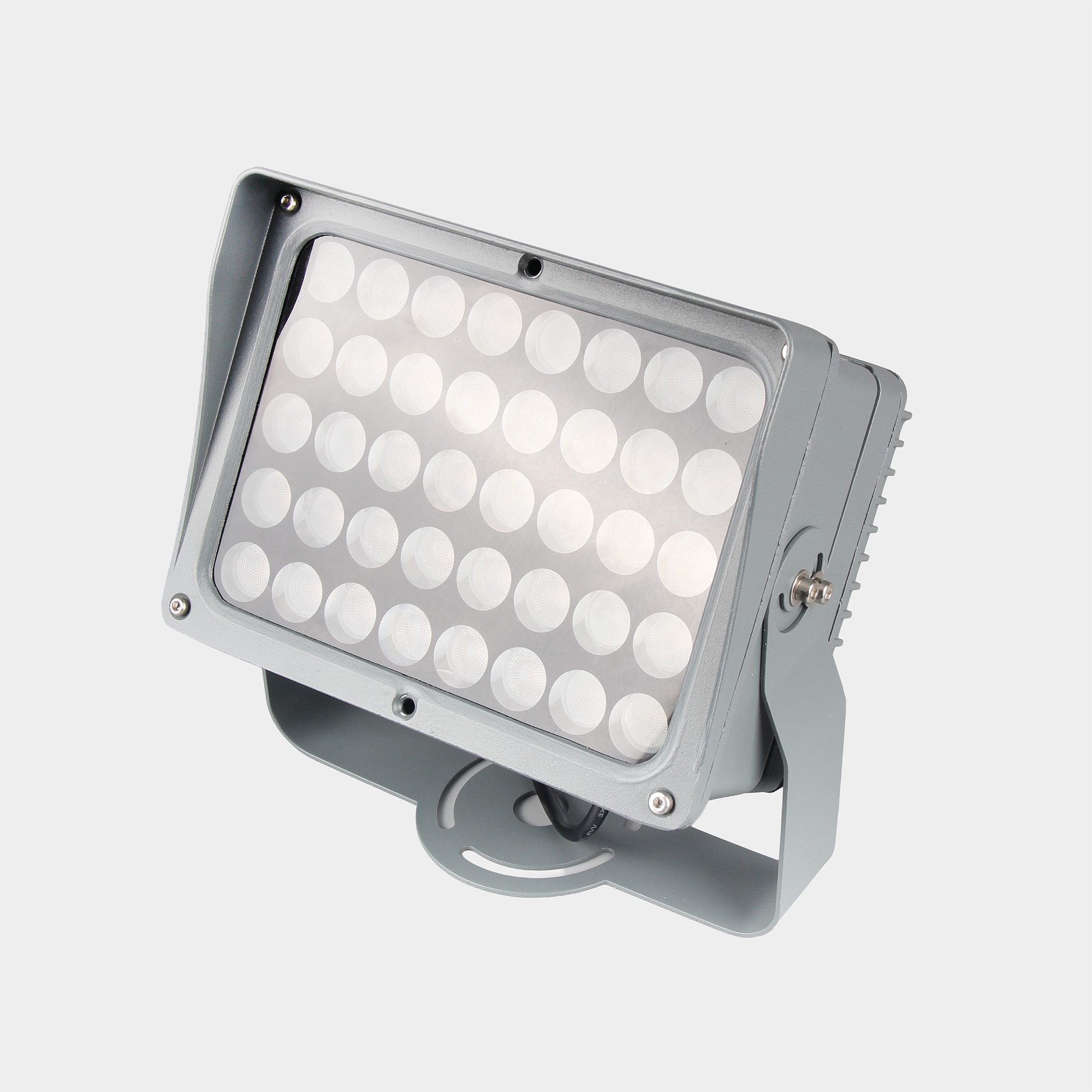

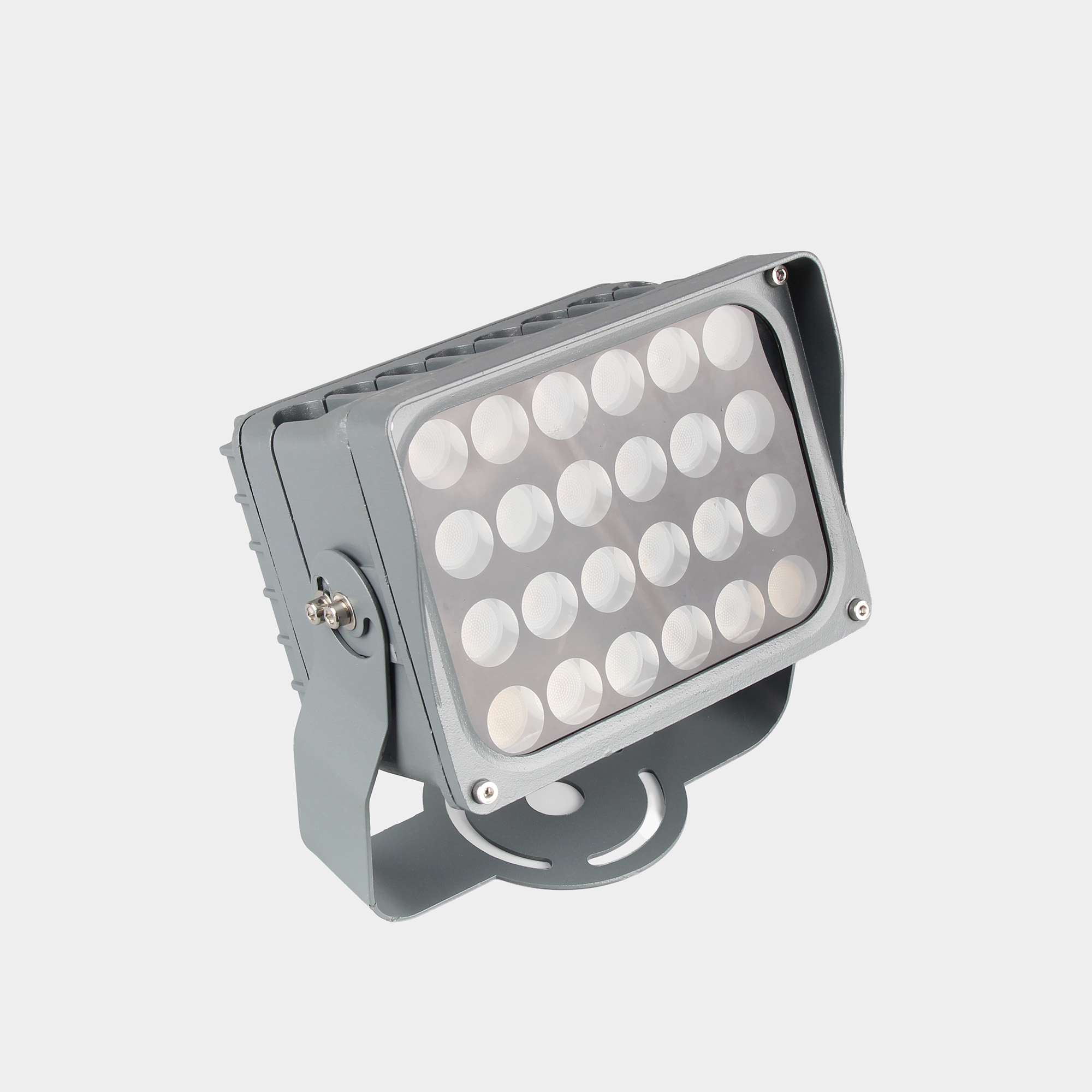

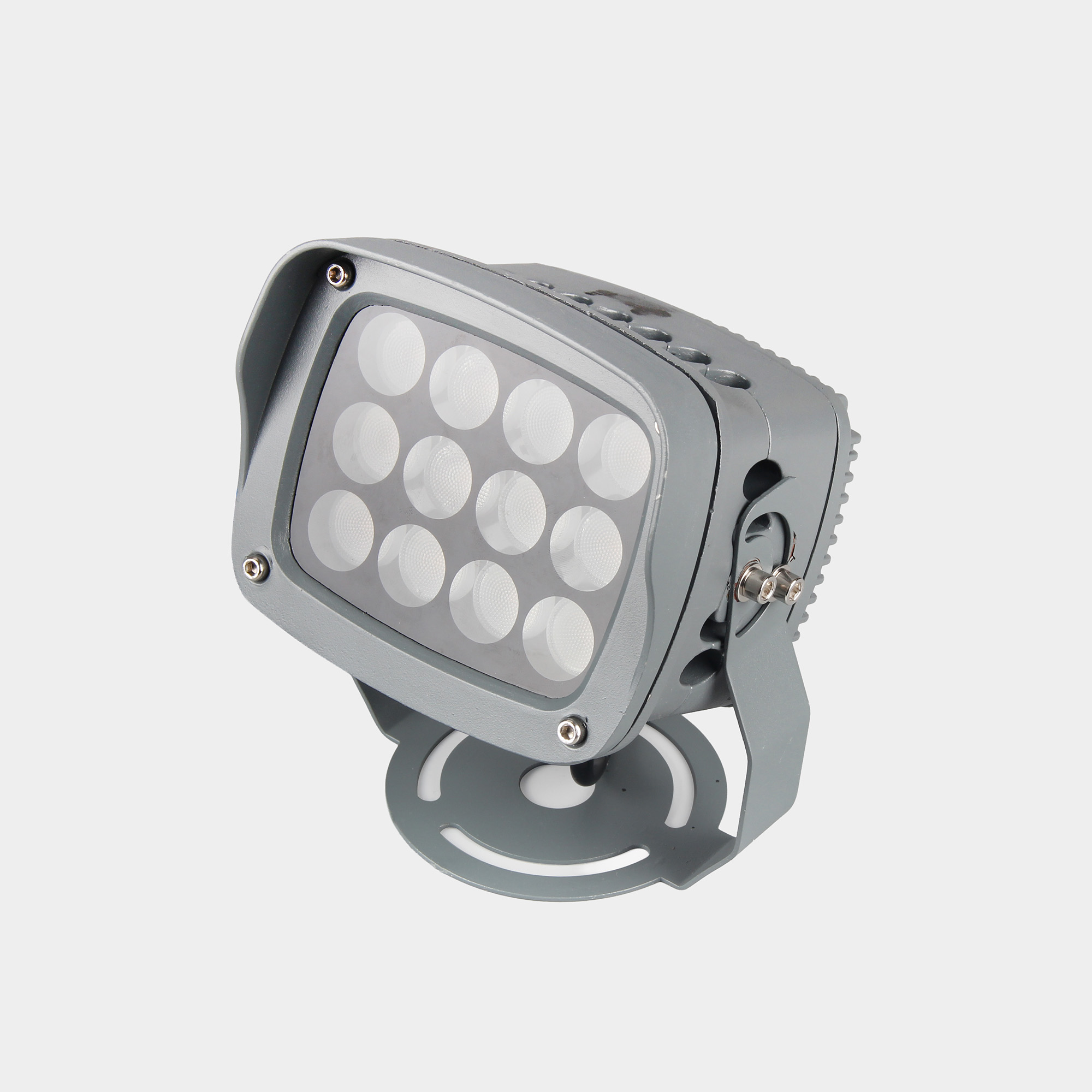

NR-FL0101 Series
POWER (WATT)
24.0/40.0/70.0
IP RATING
IP65
CCT
3000K
BEAM ANGLE
36°
Ra
80
Technical Specifications Basic Parameters
Model No
NR-FL0101 Series
New Model No
NR-FL0101-24-30K-GR-36D/NR-FL0101-40-30K-GR-36D/NR-FL0101-70-30K-GR-36D
Category
LED Flood Light
Installation Methods
Surface Mounted
Classes of Electrical Protection
Class I
IP Rating
IP65
ta
50°C
Input Voltage
AC220-240V
Frequency
Hz
Type of Chips
SMD
Watt
24.0/40.0/70.0
lm/w
74.0/74
Useful Lumen
1776.0/2960.0/5180
CCT
3000K
Beam Angle
36°
Ra
80
PF
0.5/0.9
DF
0.7/0.9
Body Color
Gray
Product Main Material
Aluminum
Dimming or not
Non-Adjustable Light
Cut hole (mm)
Guarantee
3
Directionality
Direct
Product Size (mm)
134*115*150/181*125*177/220*140*220
Energy efficiency QR included

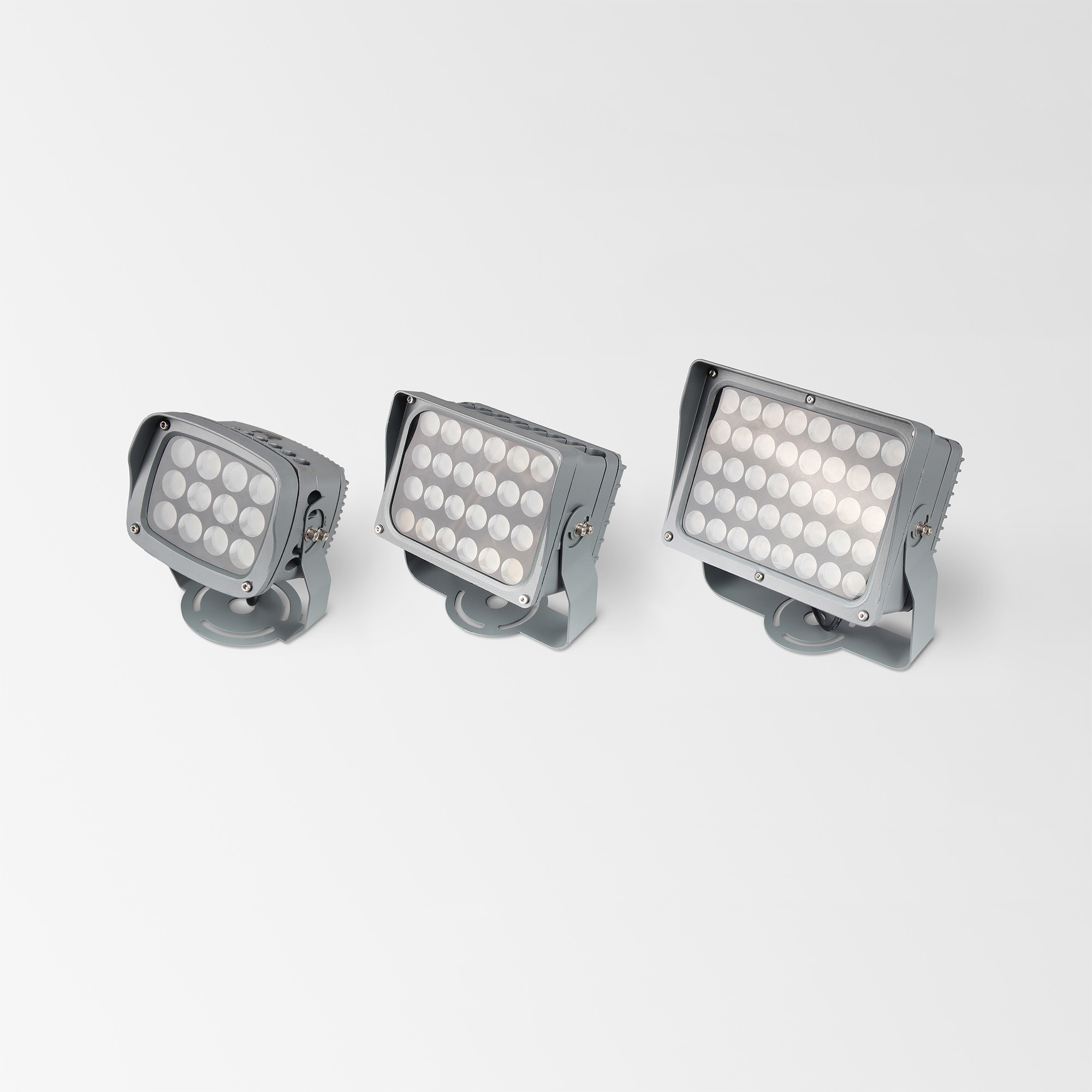

Model Variants 4 beam options
| Item Code | New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NR-FL106-24-3000K-IP65 | NR-FL0101-24-30K-GR-36D | LED Flood Light | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 24.0 | 74.0 | 1776.0 | 3000K | 36° | 80 | 0.5 | 0.7 | Gray | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 134*115*150 |
| NR-FL106-40-3000K-IP65 | NR-FL0101-40-30K-GR-36D | LED Flood Light | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 40.0 | 74.0 | 2960.0 | 3000K | 36° | 80 | 0.9 | 0.9 | Gray | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 181*125*177 |
| NR-FL106-70-3000K-IP65 | NR-FL0101-70-30K-GR-36D | LED Flood Light | Surface Mounted | Class I | IP65 | 50°C | AC220-240V | Hz | SMD | 70.0 | 74 | 5180 | 3000K | 36° | 80 | 0.9 | 0.9 | Gray | Aluminum | Non-Adjustable Light | N/A | 3 | Direct | 220*140*220 |
