NRP-IRDL0107-12

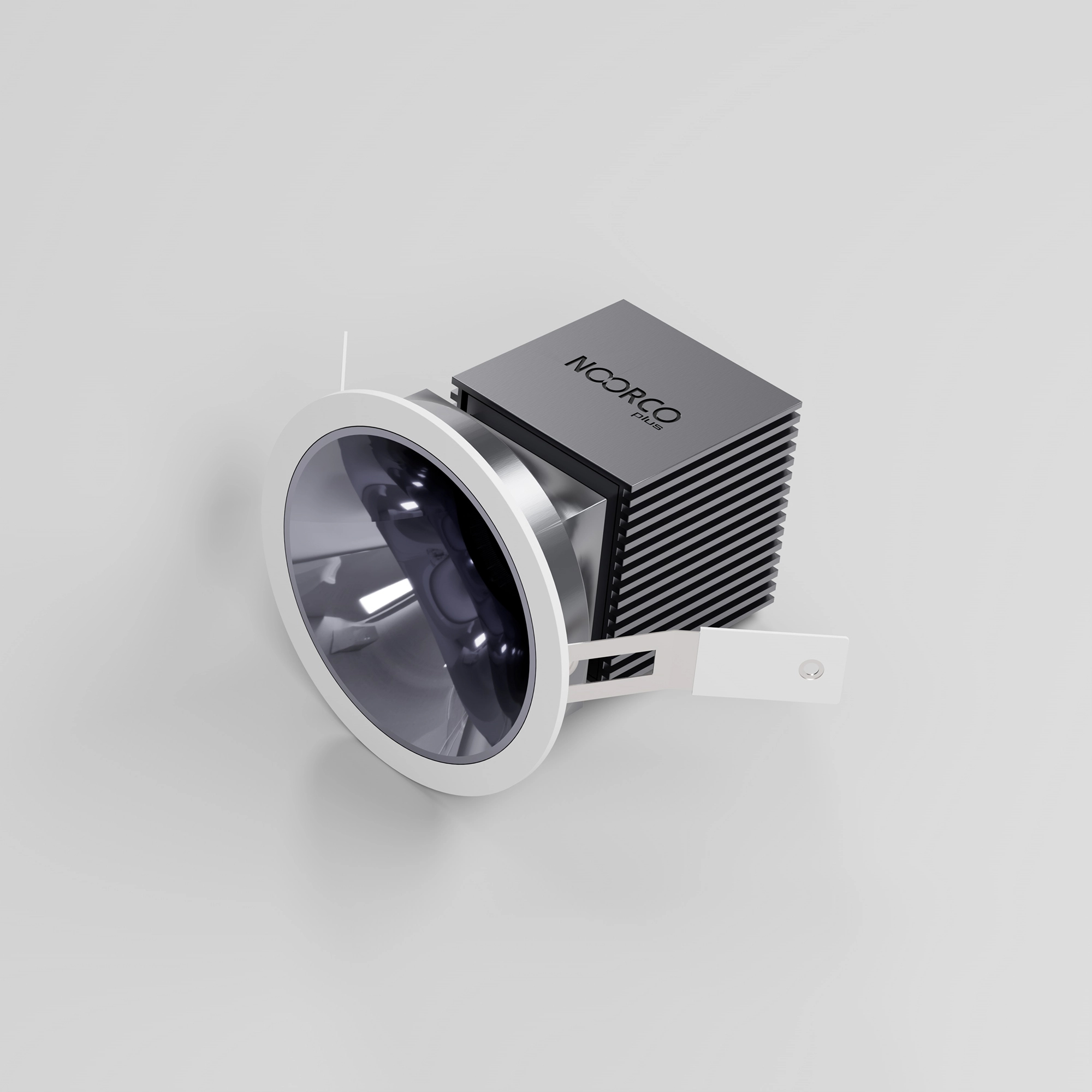

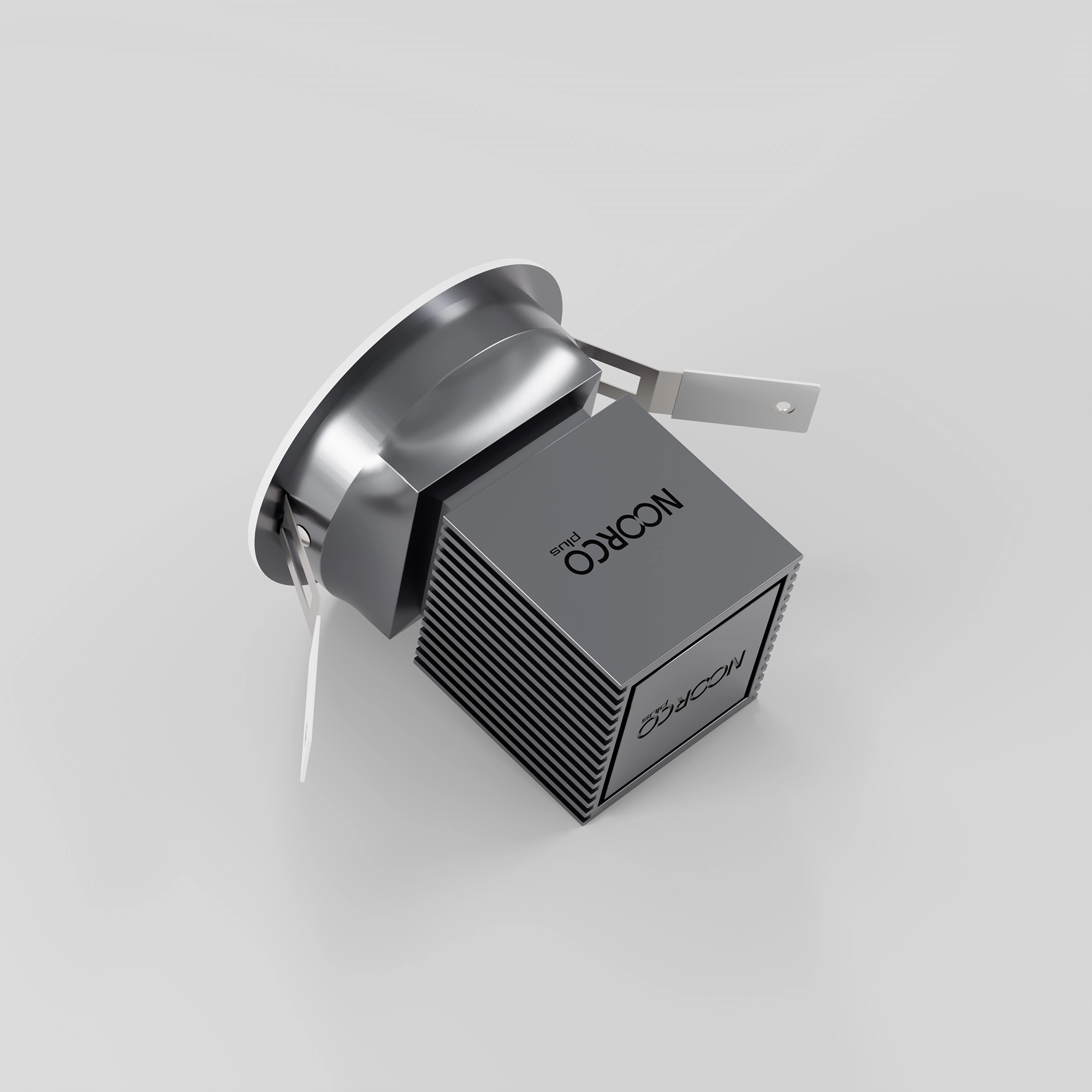

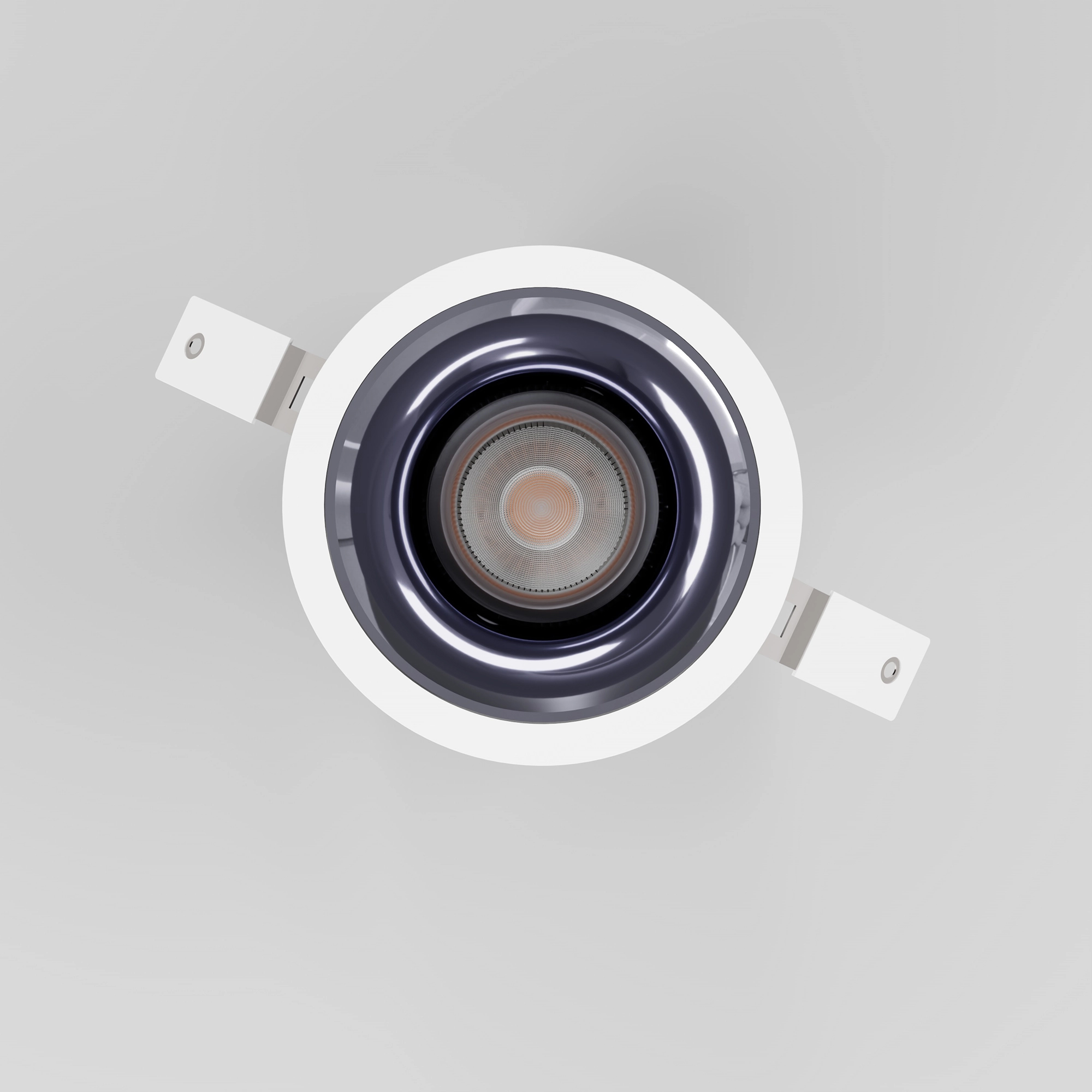

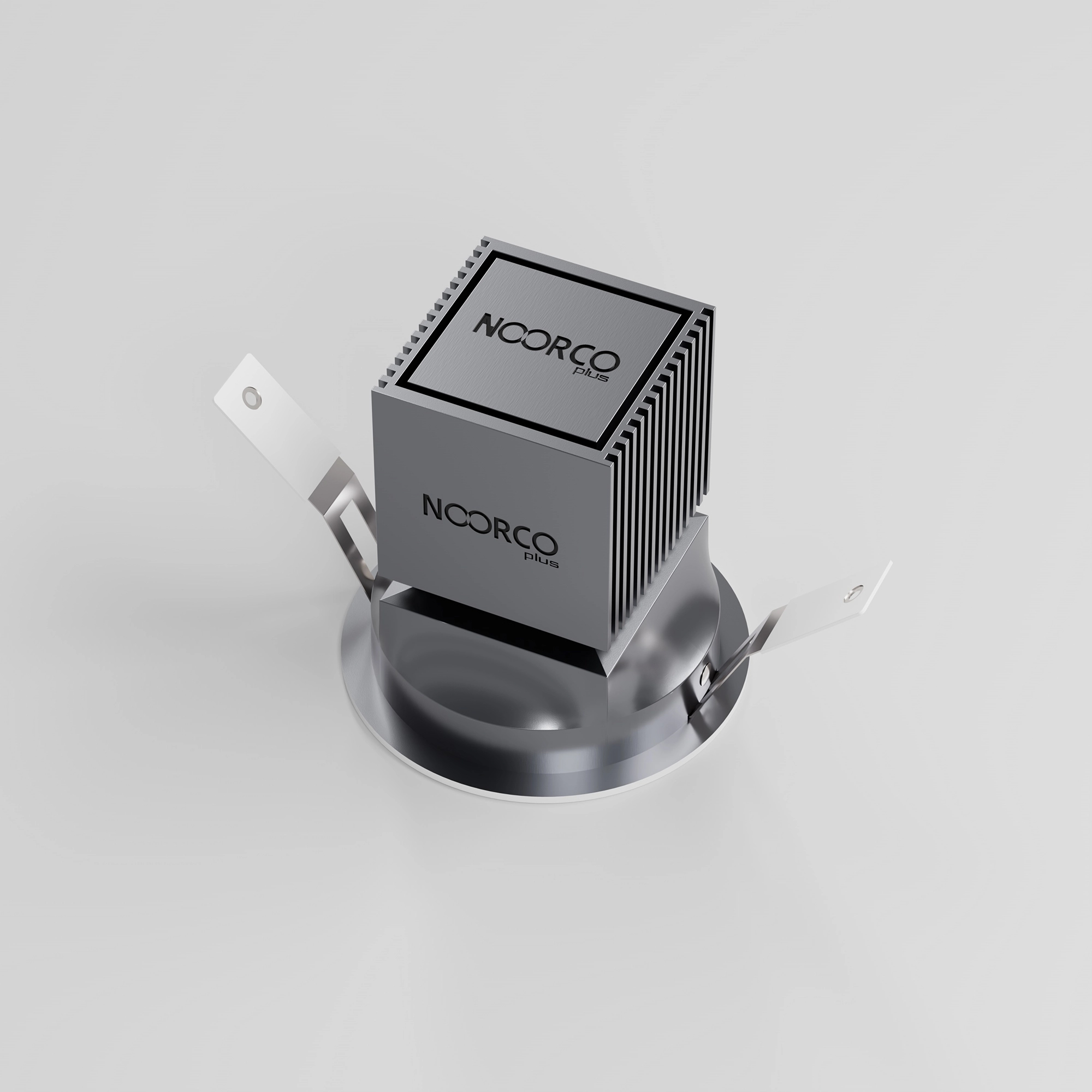

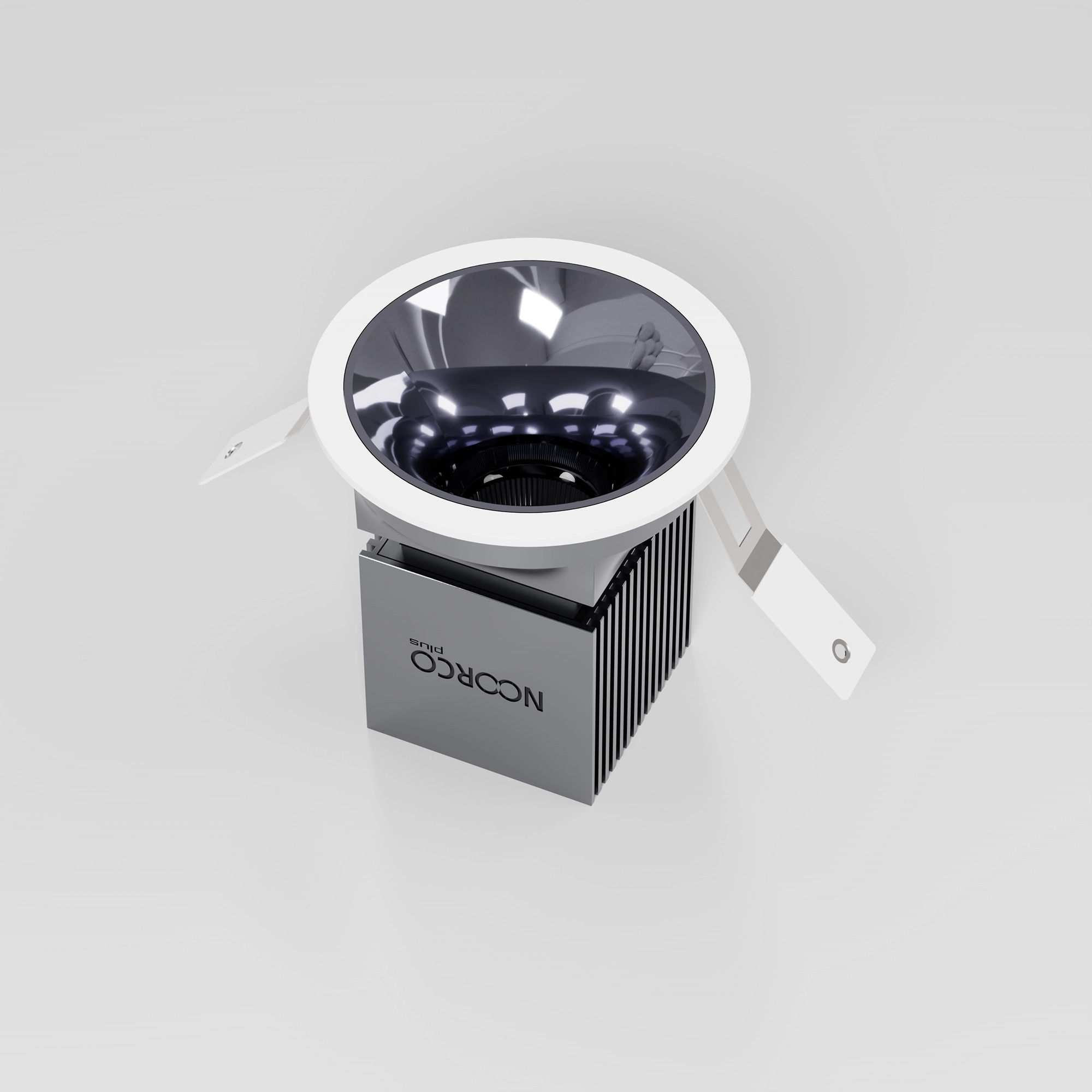

Recessed LED Downlight
CRI >99，High Efficiency & Excellent CRI
COB LED · 12W · 816lm · Precision optics 18°–50° · Anti-glare
POWER (WATT)
12W
IP RATING
IP20
CCT
3000K
BEAM ANGLE
18°/24°/36°/50°
CRI (RA)
99
Technical Specifications Basic Parameters
Model No
NRP-IRDL0107-12
IP Rating
IP20
Input Voltage
AC220-240V
Cap Type
N/A
Lamp Type
N/A
Type of Chips
COB
Watt
12W
Useful Lumen
816lm
CCT
3000K
Beam Angle
18°/24°/36°/50°
Ra
99
Body Color
Gray
Product Main Material
Aluminum + PC
Dimming or not
Non-dimmable
Cut hole (mm)
Φ75
Product Size (mm)
Φ85×85
Energy efficiency QR included
Product Description Architectural grade
The NRP-IRDL0107 Series is a recessed LED downlight designed for modern indoor lighting applications. Featuring high-quality COB LED technology, it delivers 816lm output with excellent Ra99 color rendering for accurate and vivid lighting performance.
Available with 18°, 24°, 36°, and 50° beam angles, the series is ideal for both accent and general lighting. Built with an aluminum and PC housing in a stylish gray finish, it offers reliable heat dissipation and long-lasting performance.
Supporting AC220-240V, 50/60Hz input and compliant with Class II safety standards, the downlight is suitable for residential, retail, hotel, and commercial spaces.
Model Variants 4 beam options
| New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Input Current | Cap Type | Lamp Type | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | SDCM | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NRP-IRDL0107-12-30K-GR-18D | LED Downlight | Recessed | Class II | IP20 | 40°C | AC220-240V | 50/60Hz | N/A | N/A | N/A | COB | 12 | 68 | 816 | 3000K | 18° | <6 | 99 | 0.5 | 0.7 | Gray | Aluminum + PC | Non-dimmable | Φ75 | 5 | Direct | Φ85*85 |
| NRP-IRDL0107-12-30K-GR-24D | LED Downlight | Recessed | Class II | IP20 | 40°C | AC220-240V | 50/60Hz | N/A | N/A | N/A | COB | 12 | 68 | 816 | 3000K | 24° | <6 | 99 | 0.5 | 0.7 | Gray | Aluminum + PC | Non-dimmable | Φ75 | 5 | Direct | Φ85*85 |
| NRP-IRDL0107-12-30K-GR-36D | LED Downlight | Recessed | Class II | IP20 | 40°C | AC220-240V | 50/60Hz | N/A | N/A | N/A | COB | 12 | 68 | 816 | 3000K | 36° | <6 | 99 | 0.5 | 0.7 | Gray | Aluminum + PC | Non-dimmable | Φ75 | 5 | Direct | Φ85*85 |
| NRP-IRDL0107-12-30K-GR-50D | LED Downlight | Recessed | Class II | IP20 | 40°C | AC220-240V | 50/60Hz | N/A | N/A | N/A | COB | 12 | 68 | 816 | 3000K | 50° | <6 | 99 | 0.5 | 0.7 | Gray | Aluminum + PC | Non-dimmable | Φ75 | 5 | Direct | Φ85*85 |
