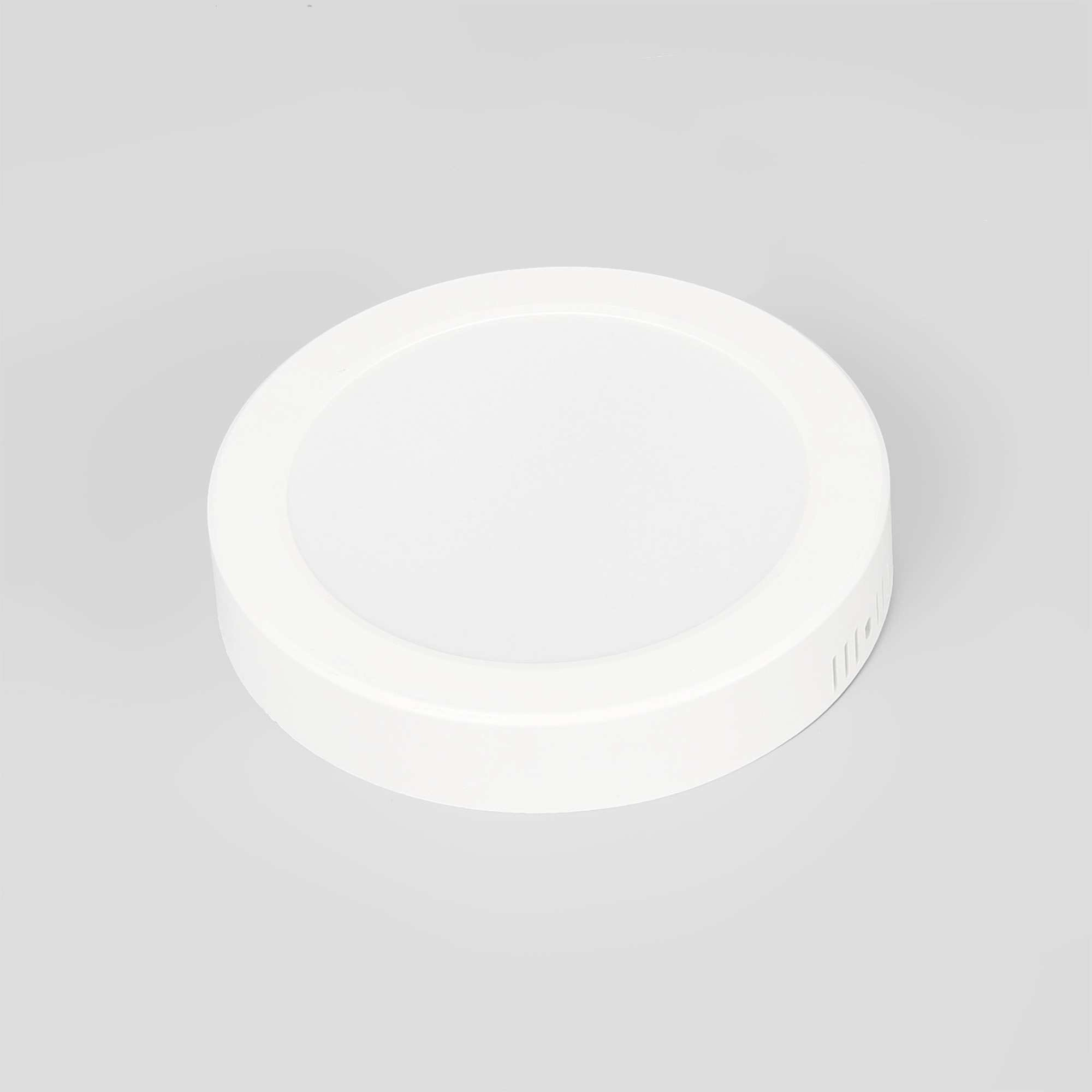

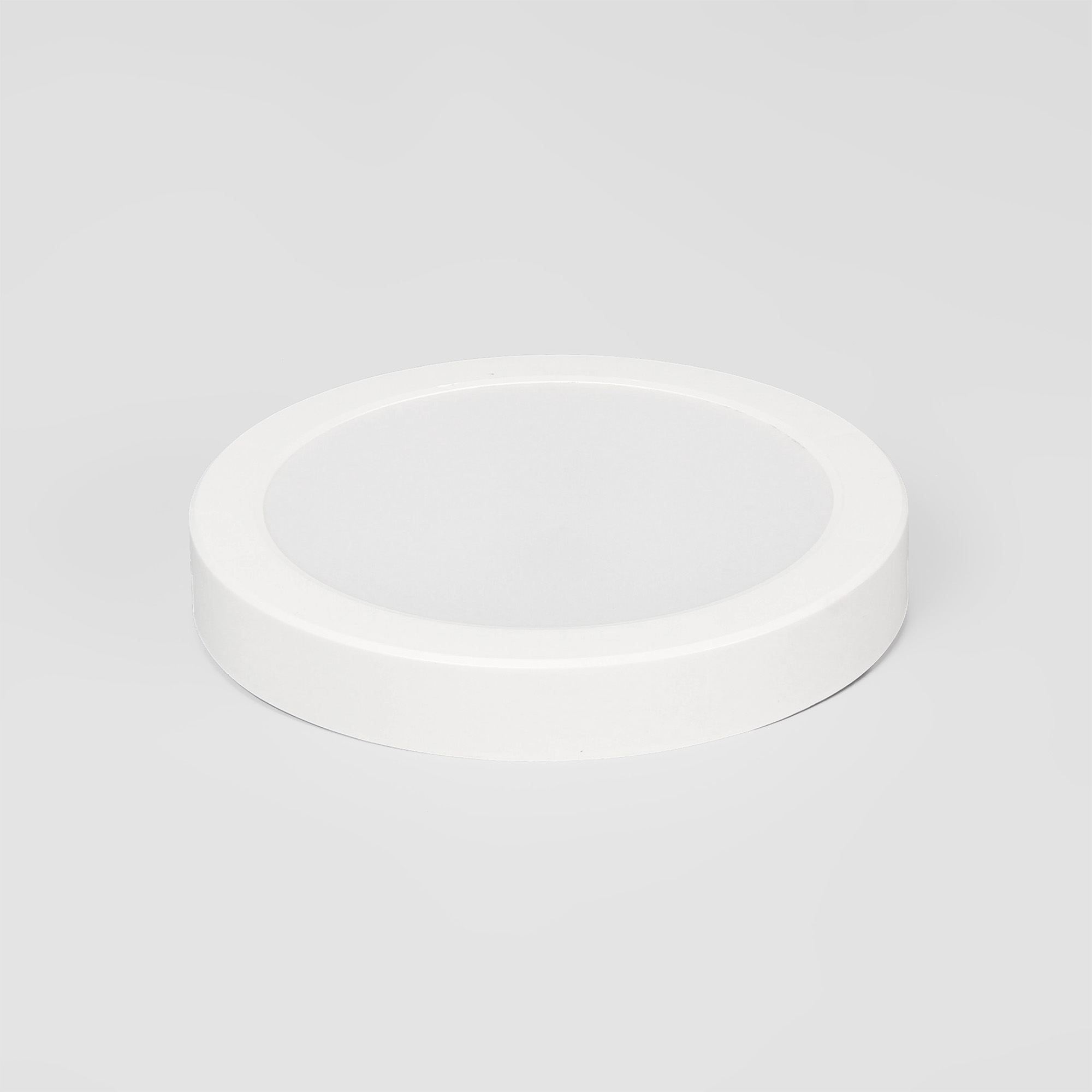

NR-SPL0101 Series
POWER (WATT)
18.0/24.0
IP RATING
IP20
CCT
3000K/6500K
BEAM ANGLE
120°
Ra
80
Technical Specifications Basic Parameters
Model No
NR-SPL0101 Series
Category
LED Panel Light
Installation Methods
Surface Mounted
Classes of Electrical Protection
Class II+III
IP Rating
IP20
ta
40°C
Input Voltage
AC220-240V
Frequency
Hz
Type of Chips
SMD
Watt
18.0/24.0
lm/w
80.0
Useful Lumen
1440.0/1920.0
CCT
3000K/6500K
Beam Angle
120°
Ra
80
PF
0.5
DF
0.7
Body Color
White
Product Main Material
Dimming or not
Non-Adjustable Light
Cut hole (mm)
Guarantee
5
Directionality
Indirect
Product Size (mm)
Φ225*35/Φ300*38
Column 25
Energy efficiency QR included
Model Variants 4 beam options
| New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NR-SPL0101-18-30K-WH-120D | LED Panel Light | Surface Mounted | Class II+III | IP20 | 40°C | AC220-240V | Hz | SMD | 18.0 | 80.0 | 1440.0 | 3000K | 120° | 80 | 0.5 | 0.7 | White | Non-Adjustable Light | N/A | 5 | Indirect | Φ225*35 | ||
| NR-SPL0101-18-65K-WH-120D | LED Panel Light | Surface Mounted | Class II+III | IP20 | 40°C | AC220-240V | Hz | SMD | 18.0 | 80.0 | 1440.0 | 6500K | 120° | 80 | 0.5 | 0.7 | White | Non-Adjustable Light | N/A | 5 | Indirect | Φ225*35 | ||
| NR-SPL0101-24-30K-WH-120D | LED Panel Light | Surface Mounted | Class II+III | IP20 | 40°C | AC220-240V | Hz | SMD | 24.0 | 80.0 | 1920.0 | 3000K | 120° | 80 | 0.5 | 0.7 | White | Non-Adjustable Light | N/A | 5 | Indirect | Φ300*38 | ||
| NR-SPL0101-24-65K-WH-120D | LED Panel Light | Surface Mounted | Class II+III | IP20 | 40°C | AC220-240V | Hz | SMD | 24.0 | 80.0 | 1920.0 | 6500K | 120° | 80 | 0.5 | 0.7 | White | Non-Adjustable Light | N/A | 5 | Indirect | Φ300*38 |
