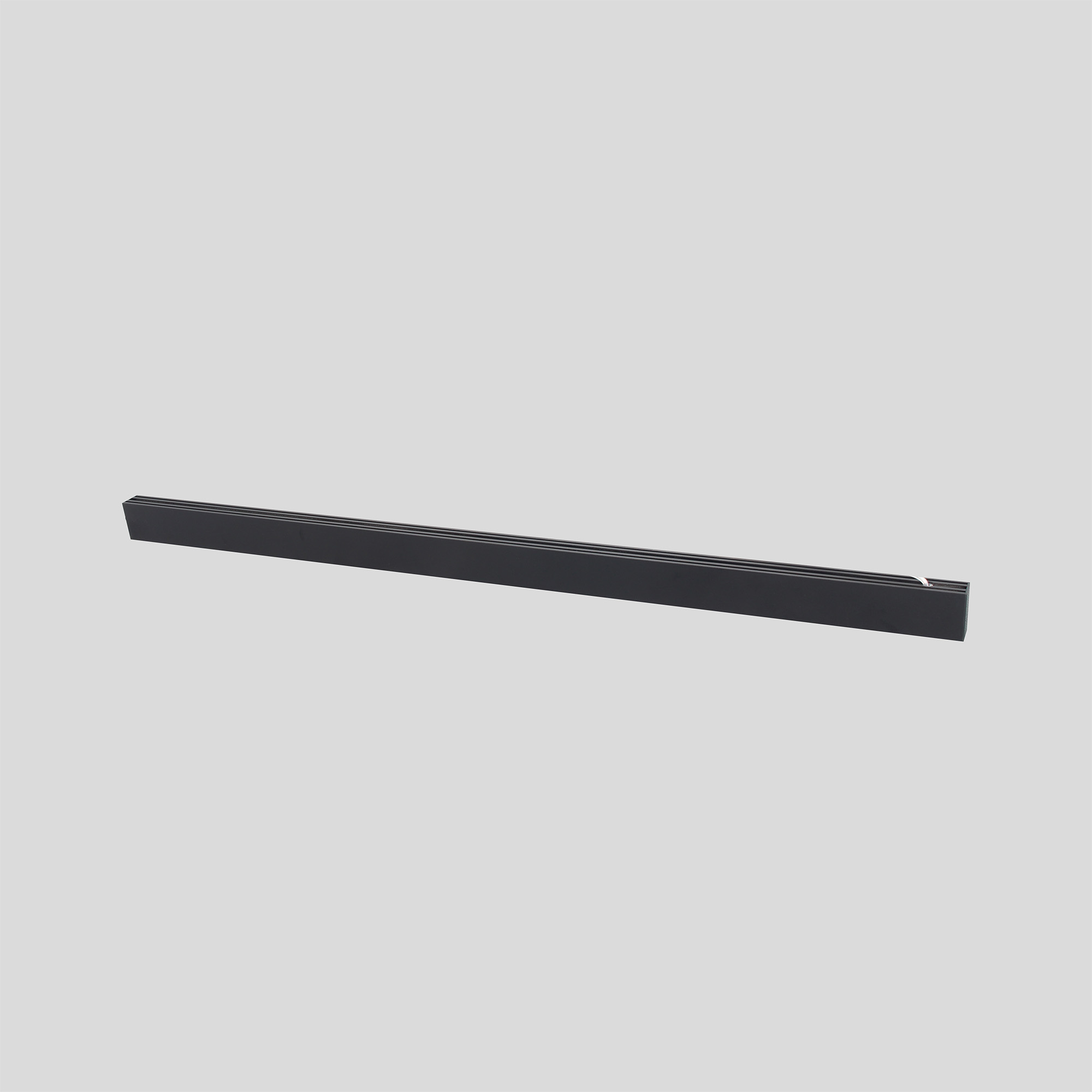

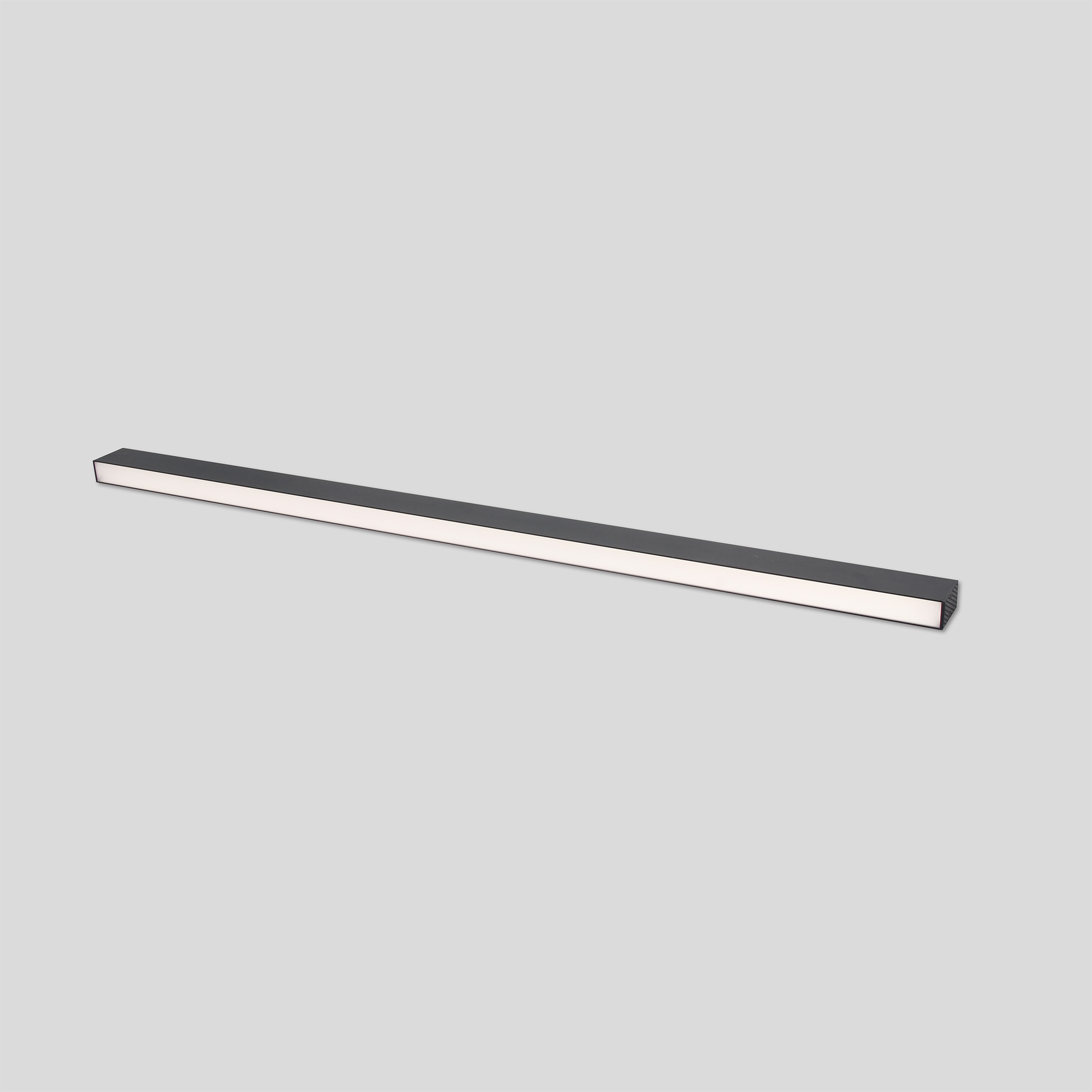

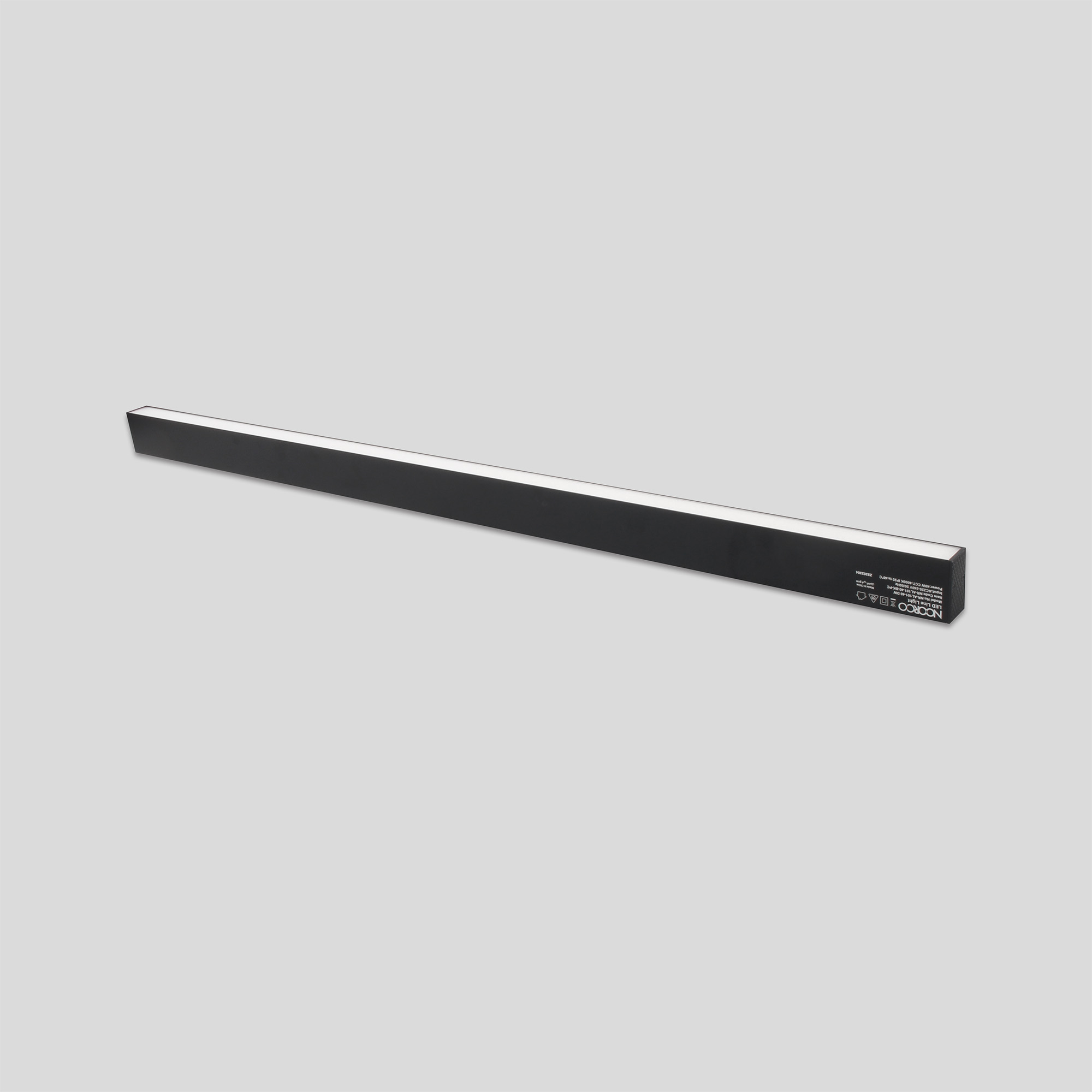

NR-LPL0151 Series
POWER (WATT)
24.0/36.0/40.0
IP RATING
IP20
CCT
4000K/3000K/6500K
BEAM ANGLE
90°/120°
Ra
80
Technical Specifications Basic Parameters
Model No
NR-LPL0151 Series
Category
LED Line Light
Installation Methods
Pendant Mounted
Classes of Electrical Protection
Class II
IP Rating
IP20
ta
40°C
Input Voltage
AC220-240V
Frequency
Hz
Type of Chips
SMD
Watt
24.0/36.0/40.0
lm/w
100.0/101.0
Useful Lumen
2400.0/3636.0/4040.0
CCT
4000K/3000K/6500K
Beam Angle
90°/120°
Ra
80
PF
0.5/0.9
DF
0.7/0.9
Body Color
Black/White
Product Main Material
Aluminum
Dimming or not
Non-Adjustable Light/Adjustable Light
Cut hole (mm)
Guarantee
5
Directionality
Indirect
Product Size (mm)
1204*33*60
Energy efficiency QR included
Model Variants 4 beam options
| New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NR-LPL0151-24-40K-BK-90D | LED Line Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 24.0 | 100.0 | 2400.0 | 4000K | 90° | 80 | 0.5 | 0.7 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1204*33*60 |
| NR-LPL0151-36-30K-BK-120D | LED Line Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 36.0 | 101.0 | 3636.0 | 3000K | 120° | 80 | 0.9 | 0.9 | Black | Aluminum | Adjustable Light | N/A | 5 | Indirect | 1204*33*60 |
| NR-LPL0151-36-40K-BK-120D | LED Line Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 36.0 | 101.0 | 3636.0 | 4000K | 120° | 80 | 0.9 | 0.9 | Black | Aluminum | Adjustable Light | N/A | 5 | Indirect | 1204*33*60 |
| NR-LPL0151-40-30K-BK-120D | LED Line Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 40.0 | 101.0 | 4040.0 | 3000K | 120° | 80 | 0.9 | 0.9 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1204*33*60 |
| NR-LPL0151-40-40K-BK-120D | LED Line Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 40.0 | 101.0 | 4040.0 | 4000K | 120° | 80 | 0.9 | 0.9 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1204*33*60 |
| NR-LPL0151-40-65K-BK-120D | LED Line Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 40.0 | 101.0 | 4040.0 | 6500K | 120° | 80 | 0.9 | 0.9 | Black | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1204*33*60 |
| NR-LPL0151-40-30K-WH-120D | LED Line Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 40.0 | 101.0 | 4040.0 | 3000K | 120° | 80 | 0.9 | 0.9 | White | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1204*33*60 |
| NR-LPL0151-40-40K-WH-120D | LED Line Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 40.0 | 101.0 | 4040.0 | 4000K | 120° | 80 | 0.9 | 0.9 | White | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1204*33*60 |
| NR-LPL0151-40-65K-WH-120D | LED Line Light | Pendant Mounted | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 40.0 | 101.0 | 4040.0 | 6500K | 120° | 80 | 0.9 | 0.9 | White | Aluminum | Non-Adjustable Light | N/A | 5 | Indirect | 1204*33*60 |
