NR-AL104 Series
POWER (WATT)
20.0/40.0
IP RATING
IP20
CCT
3000K/4000K
BEAM ANGLE
120°
Ra
80
Technical Specifications Basic Parameters
Model No
NR-AL104 Series
Category
LED Line Light
Installation Methods
Recessed
Classes of Electrical Protection
Class II
IP Rating
IP20
ta
40°C
Input Voltage
AC220-240V
Frequency
Hz
Type of Chips
SMD
Watt
20.0/40.0
lm/w
103.0/112.8/103
Useful Lumen
2060.0/4512.0/2060
CCT
3000K/4000K
Beam Angle
120°
Ra
80
PF
0.7/0.9
DF
0.7/0.9
Body Color
Black/White
Product Main Material
Aluminum + PC
Dimming or not
Non-Adjustable Light
Cut hole (mm)
615*55/1215*55/370*330*55/355*330*50/360*285*50
Guarantee
5
Directionality
Indirect
Product Size (mm)
619*66*63/1215*66*63/375*335*69/360*334*63/365*290*69/320*360*34.8
Energy efficiency QR included
Model Variants 4 beam options
| New Model No | Item Code | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

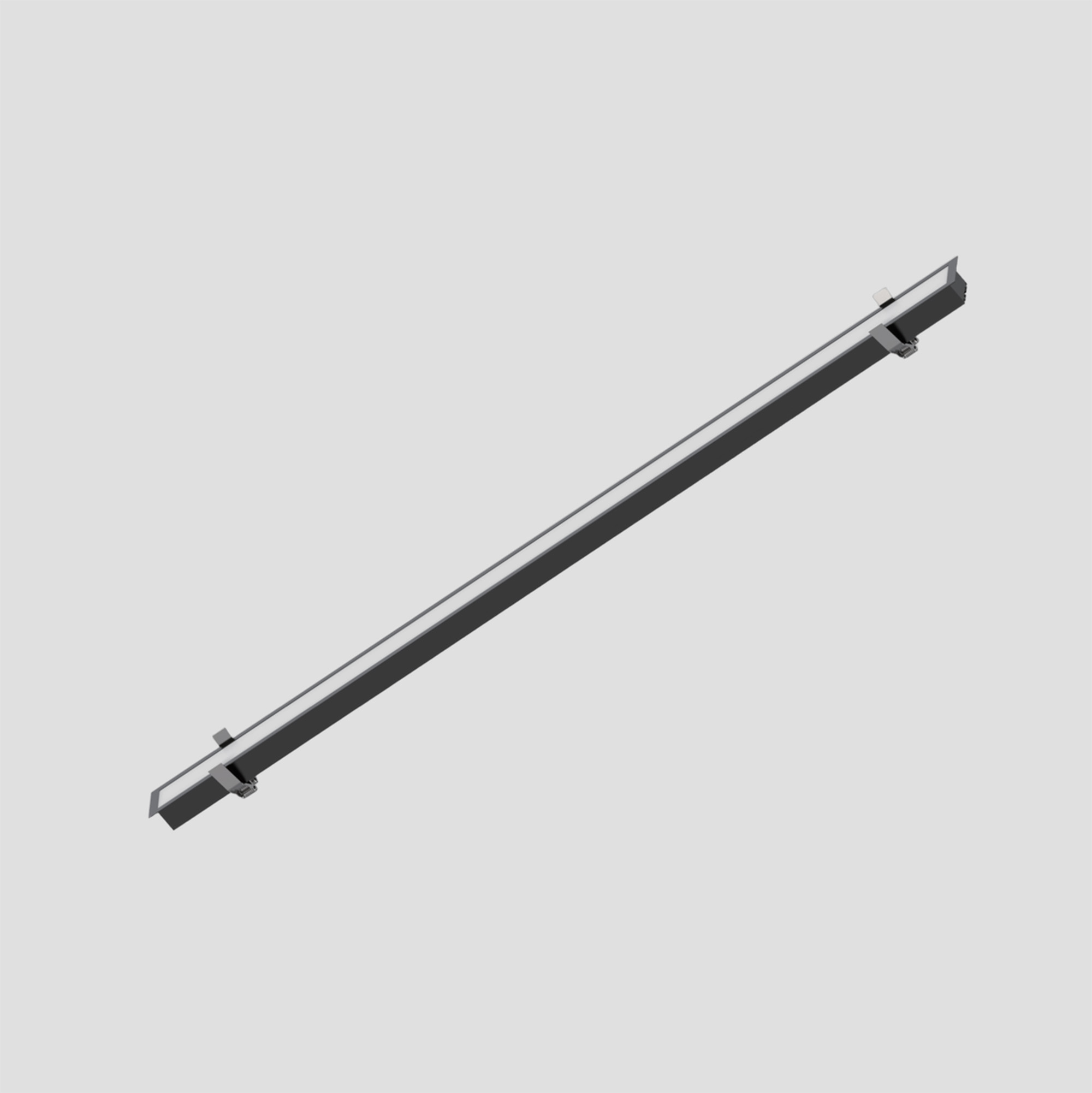

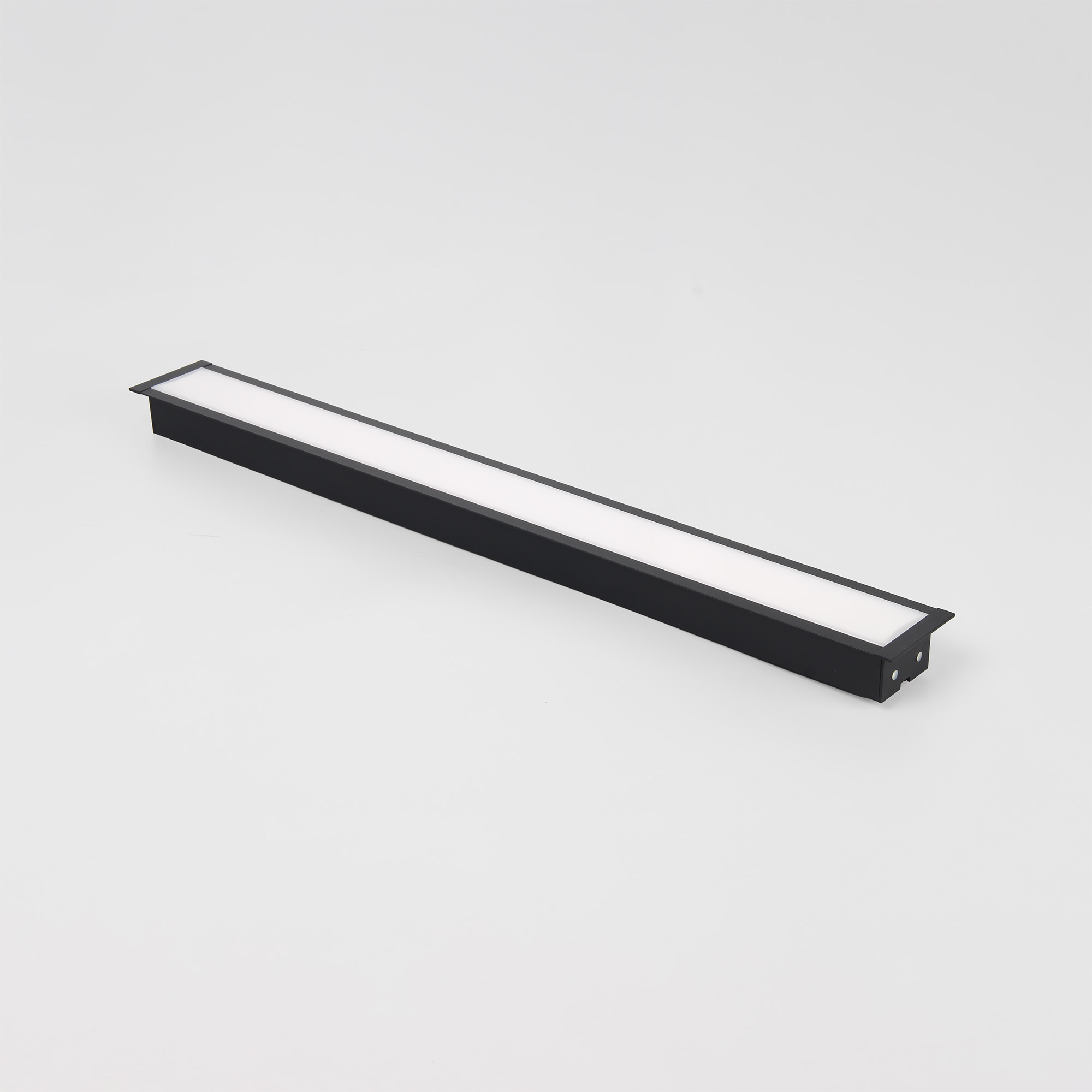

| NR-IRLL0101-20-30K-BK-120D | NR-AL104-20-BK-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103.0 | 2060.0 | 3000K | 120° | 80 | 0.7 | 0.7 | Black | Aluminum + PC | Non-Adjustable Light | 615*55 | 5 | Indirect | 619*66*63 |
| NR-IRLL0101-20-40K-BK-120D | NR-AL104-20-BK-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103.0 | 2060.0 | 4000K | 120° | 80 | 0.7 | 0.7 | Black | Aluminum + PC | Non-Adjustable Light | 615*55 | 5 | Indirect | 619*66*63 |
| NR-IRLL0101-20-30K-WH-120D | NR-AL104-20-W-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103.0 | 2060.0 | 3000K | 120° | 80 | 0.7 | 0.7 | White | Aluminum + PC | Non-Adjustable Light | 615*55 | 5 | Indirect | 619*66*63 |
| NR-IRLL0101-20-40K-WH-120D | NR-AL104-20-W-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103.0 | 2060.0 | 4000K | 120° | 80 | 0.7 | 0.7 | White | Aluminum + PC | Non-Adjustable Light | 615*55 | 5 | Indirect | 619*66*63 |
| NR-IRLL0101-40-30K-BK-120D | NR-AL104-40-BK-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 40.0 | 112.8 | 4512.0 | 3000K | 120° | 80 | 0.9 | 0.9 | Black | Aluminum + PC | Non-Adjustable Light | 1215*55 | 5 | Indirect | 1215*66*63 |
| NR-IRLL0101-40-40K-BK-120D | NR-AL104-40-BK-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 40.0 | 112.8 | 4512.0 | 4000K | 120° | 80 | 0.9 | 0.9 | Black | Aluminum + PC | Non-Adjustable Light | 1215*55 | 5 | Indirect | 1215*66*63 |
| NR-IRLL0101-40-30K-WH-120D | NR-AL104-40-W-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 40.0 | 112.8 | 4512.0 | 3000K | 120° | 80 | 0.9 | 0.9 | White | Aluminum + PC | Non-Adjustable Light | 1215*55 | 5 | Indirect | 1215*66*63 |
| NR-IRLL0101-40-40K-WH-120D | NR-AL104-40-W-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 40.0 | 112.8 | 4512.0 | 4000K | 120° | 80 | 0.9 | 0.9 | White | Aluminum + PC | Non-Adjustable Light | 1215*55 | 5 | Indirect | 1215*66*63 |

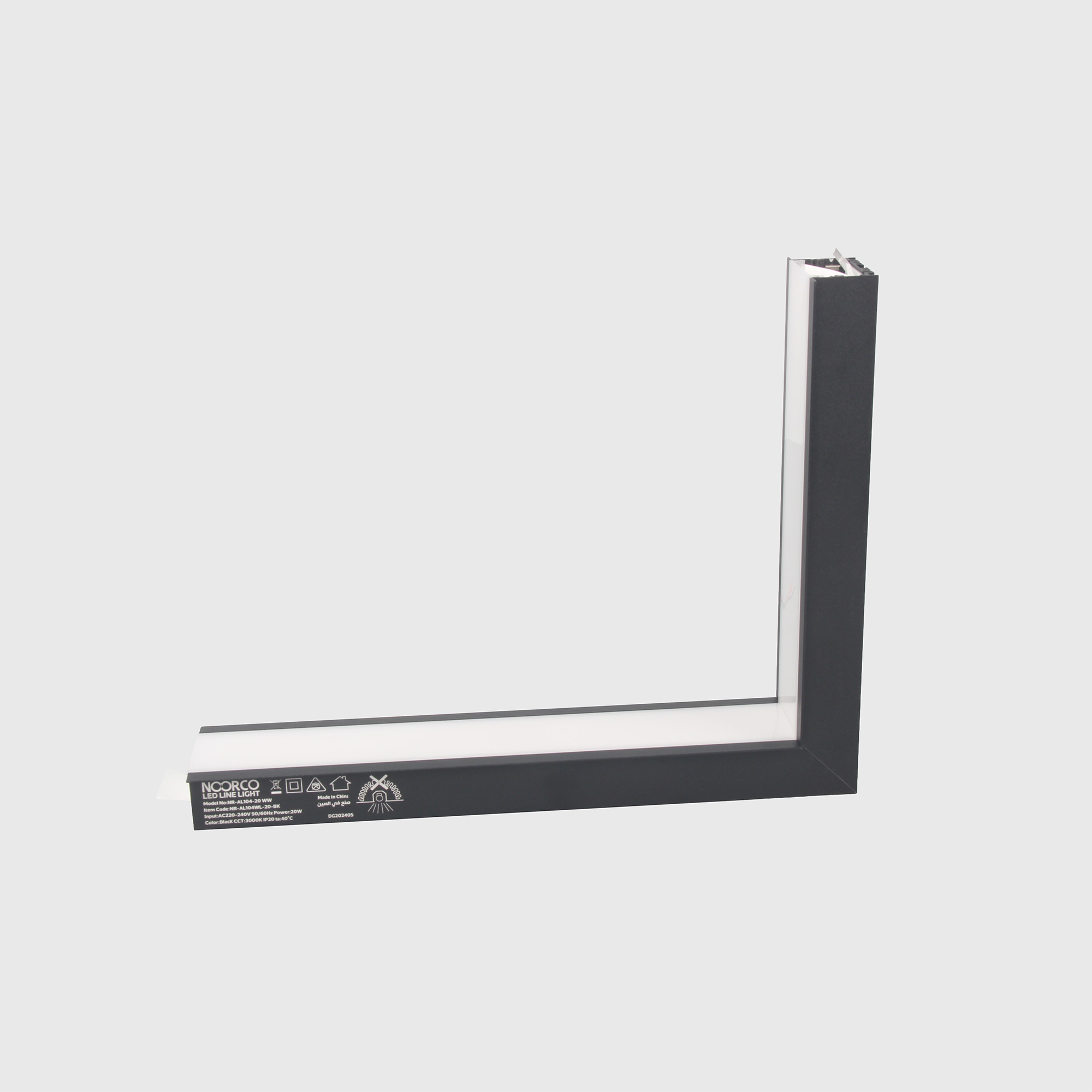

| NR-IRLL0151-20-30K-BK-120D | NR-AL104L-20-BK-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 3000K | 120° | 80 | 0.7 | 0.7 | Black | Aluminum + PC | Non-Adjustable Light | 370*330*55 | 5 | Indirect | 375*335*69 |
| NR-IRLL0151-20-40K-BK-120D | NR-AL104L-20-BK-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 4000K | 120° | 80 | 0.7 | 0.7 | Black | Aluminum + PC | Non-Adjustable Light | 370*330*55 | 5 | Indirect | 375*335*69 |
| NR-IRLL0151-20-30K-WH-120D | NR-AL104L-20-W-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 3000K | 120° | 80 | 0.7 | 0.7 | White | Aluminum + PC | Non-Adjustable Light | 370*330*55 | 5 | Indirect | 375*335*69 |
| NR-IRLL0151-20-40K-WH-120D | NR-AL104L-20-W-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 4000K | 120° | 80 | 0.7 | 0.7 | White | Aluminum + PC | Non-Adjustable Light | 370*330*55 | 5 | Indirect | 375*335*69 |
| NR-IRLL0251-20-30K-BK-120D | NR-AL104T-20-BK-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 3000K | 120° | 80 | 0.7 | 0.7 | Black | Aluminum + PC | Non-Adjustable Light | 355*330*50 | 5 | Indirect | 360*334*63 |
| NR-IRLL0251-20-40K-BK-120D | NR-AL104T-20-BK-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 4000K | 120° | 80 | 0.7 | 0.7 | Black | Aluminum + PC | Non-Adjustable Light | 355*330*50 | 5 | Indirect | 360*334*63 |
| NR-IRLL0251-20-30K-WH-120D | NR-AL104T-20-W-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 3000K | 120° | 80 | 0.7 | 0.7 | White | Aluminum + PC | Non-Adjustable Light | 355*330*50 | 5 | Indirect | 360*334*63 |
| NR-IRLL0251-20-40K-WH-120D | NR-AL104T-20-W-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 4000K | 120° | 80 | 0.7 | 0.7 | White | Aluminum + PC | Non-Adjustable Light | 355*330*50 | 5 | Indirect | 360*334*63 |

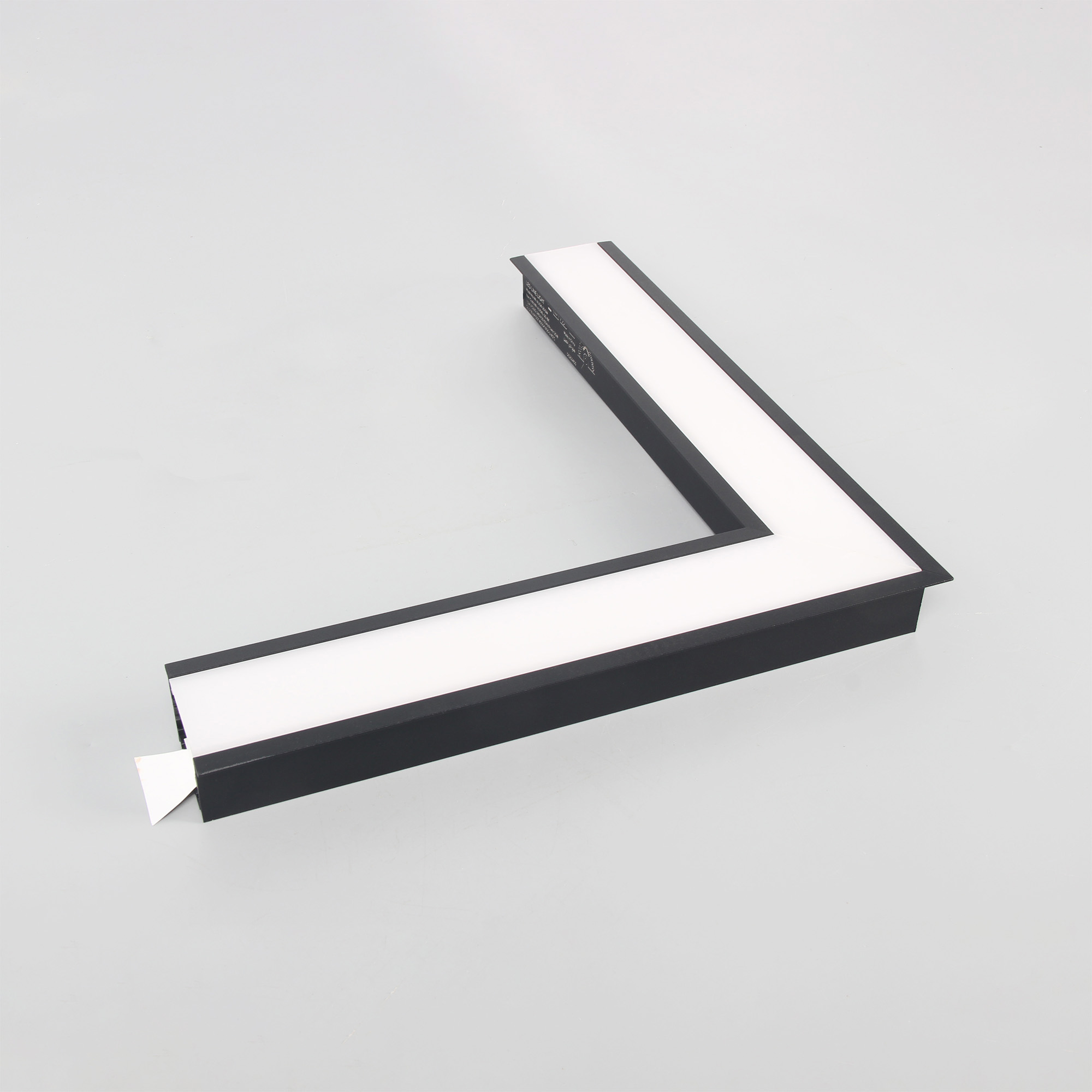

| NR-IRLL0201-20-30K-BK-120D | NR-AL104WL-20-BK-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 3000K | 120° | 80 | 0.7 | 0.7 | Black | Aluminum + PC | Non-Adjustable Light | 360*285*50 | 5 | Indirect | 365*290*69 |
| NR-IRLL0201-20-40K-BK-120D | NR-AL104WL-20-BK-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 4000K | 120° | 80 | 0.7 | 0.7 | Black | Aluminum + PC | Non-Adjustable Light | 360*285*50 | 5 | Indirect | 365*290*69 |
| NR-IRLL0201-20-30K-WH-120D | NR-AL104WL-20-W-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 3000K | 120° | 80 | 0.7 | 0.7 | White | Aluminum + PC | Non-Adjustable Light | 360*285*50 | 5 | Indirect | 365*290*69 |
| NR-IRLL0201-20-40K-WH-120D | NR-AL104WL-20-W-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 4000K | 120° | 80 | 0.7 | 0.7 | White | Aluminum + PC | Non-Adjustable Light | 360*285*50 | 5 | Indirect | 365*290*69 |

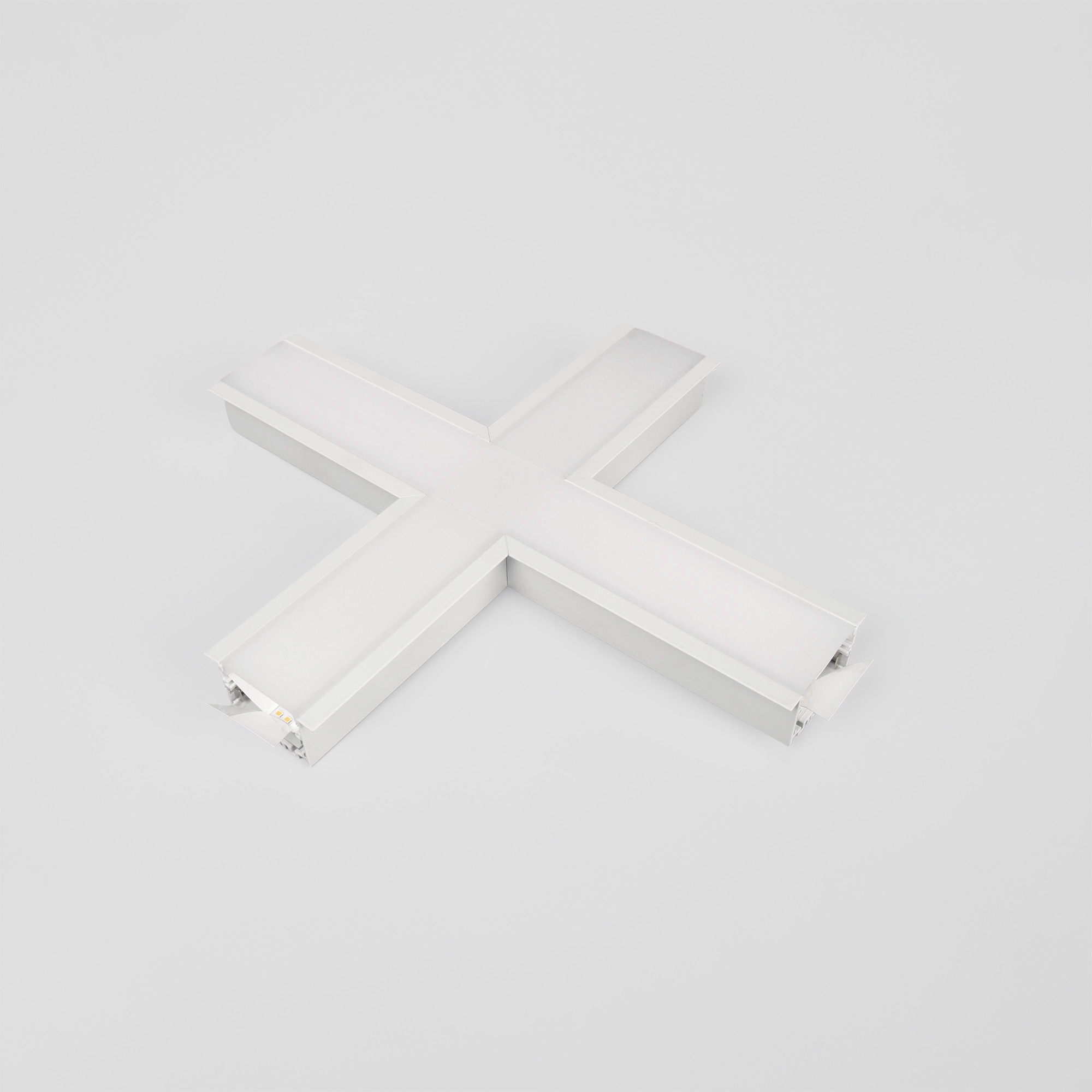

| NR-IRLL0301-20-30K-BK-120D | NR-AL104X-20-BK-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 3000K | 120° | 80 | 0.7 | 0.7 | Black | Aluminum + PC | Non-Adjustable Light | 370*330*55 | 5 | Indirect | 320*360*34.8 |
| NR-IRLL0301-20-40K-BK-120D | NR-AL104X-20-BK-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 4000K | 120° | 80 | 0.7 | 0.7 | Black | Aluminum + PC | Non-Adjustable Light | 370*330*55 | 5 | Indirect | 320*360*34.8 |
| NR-AL104-20 S WW | NR-AL104X-20-W-3000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 3000K | 120° | 80 | 0.7 | 0.7 | White | Aluminum + PC | Non-Adjustable Light | 370*330*55 | 5 | Indirect | 320*360*34.8 |
| NR-IRLL0301-20-40K-WH-120D | NR-AL104X-20-W-4000K | LED Line Light | Recessed | Class II | IP20 | 40°C | AC220-240V | Hz | SMD | 20.0 | 103 | 2060 | 4000K | 120° | 80 | 0.7 | 0.7 | White | Aluminum + PC | Non-Adjustable Light | 370*330*55 | 5 | Indirect | 320*360*34.8 |
