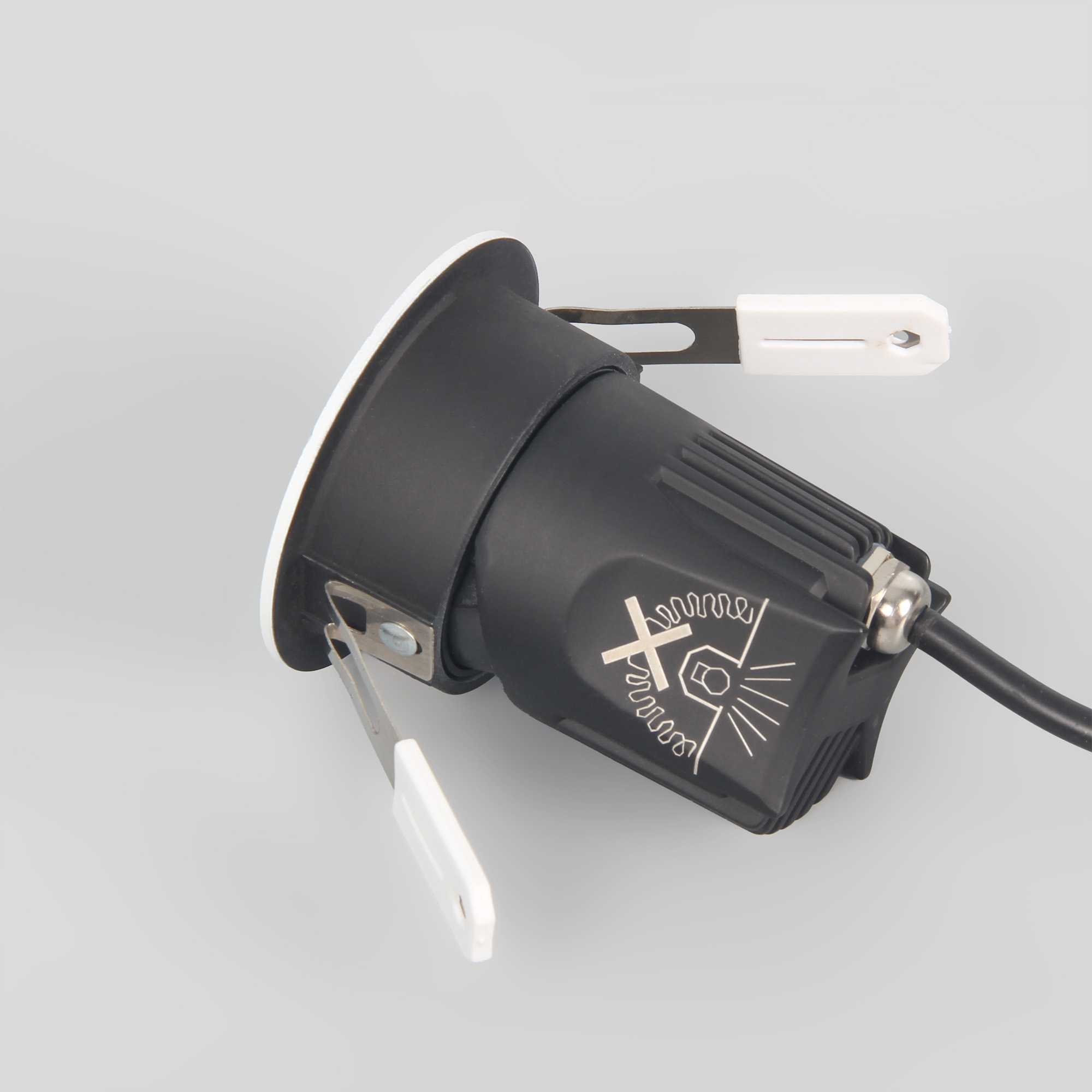

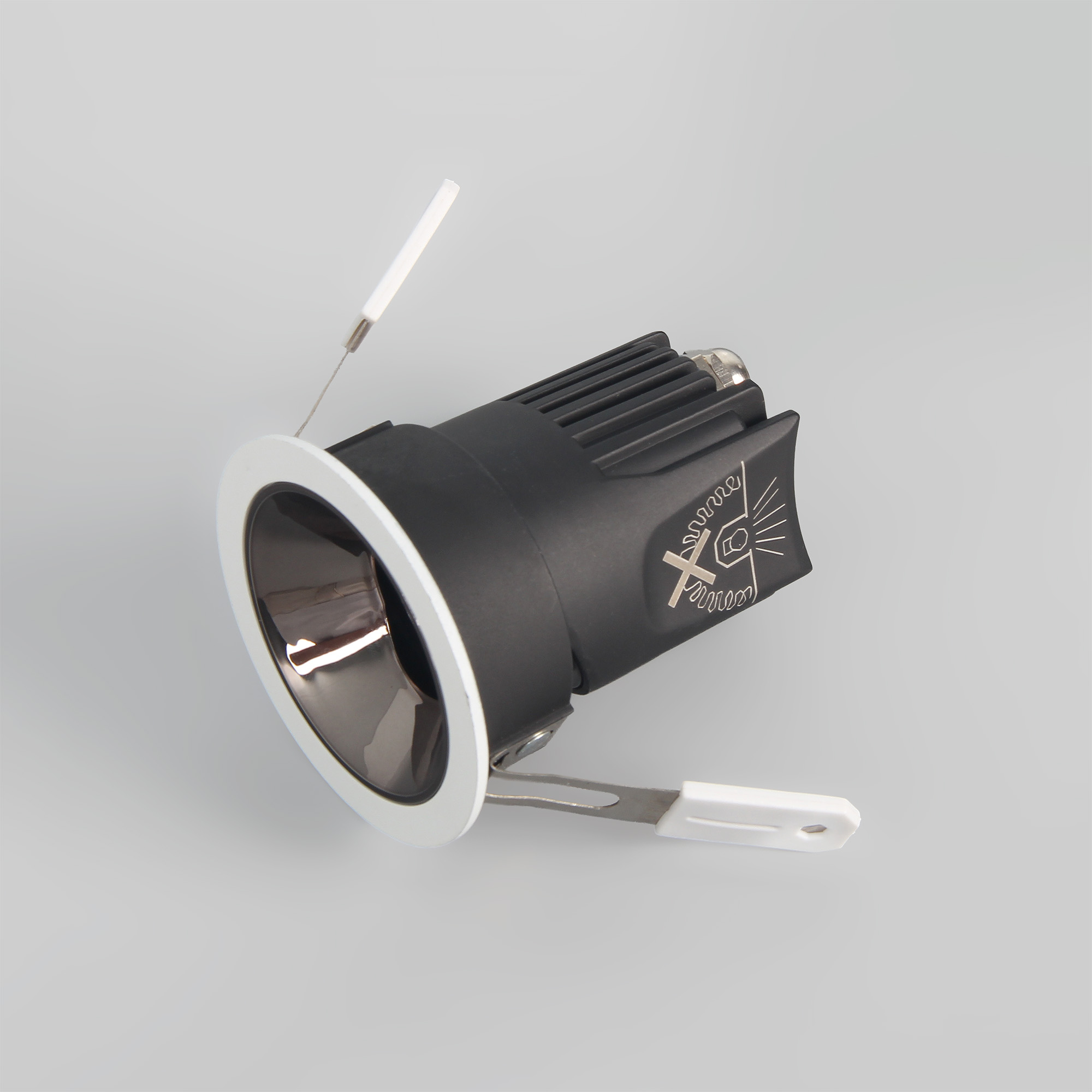

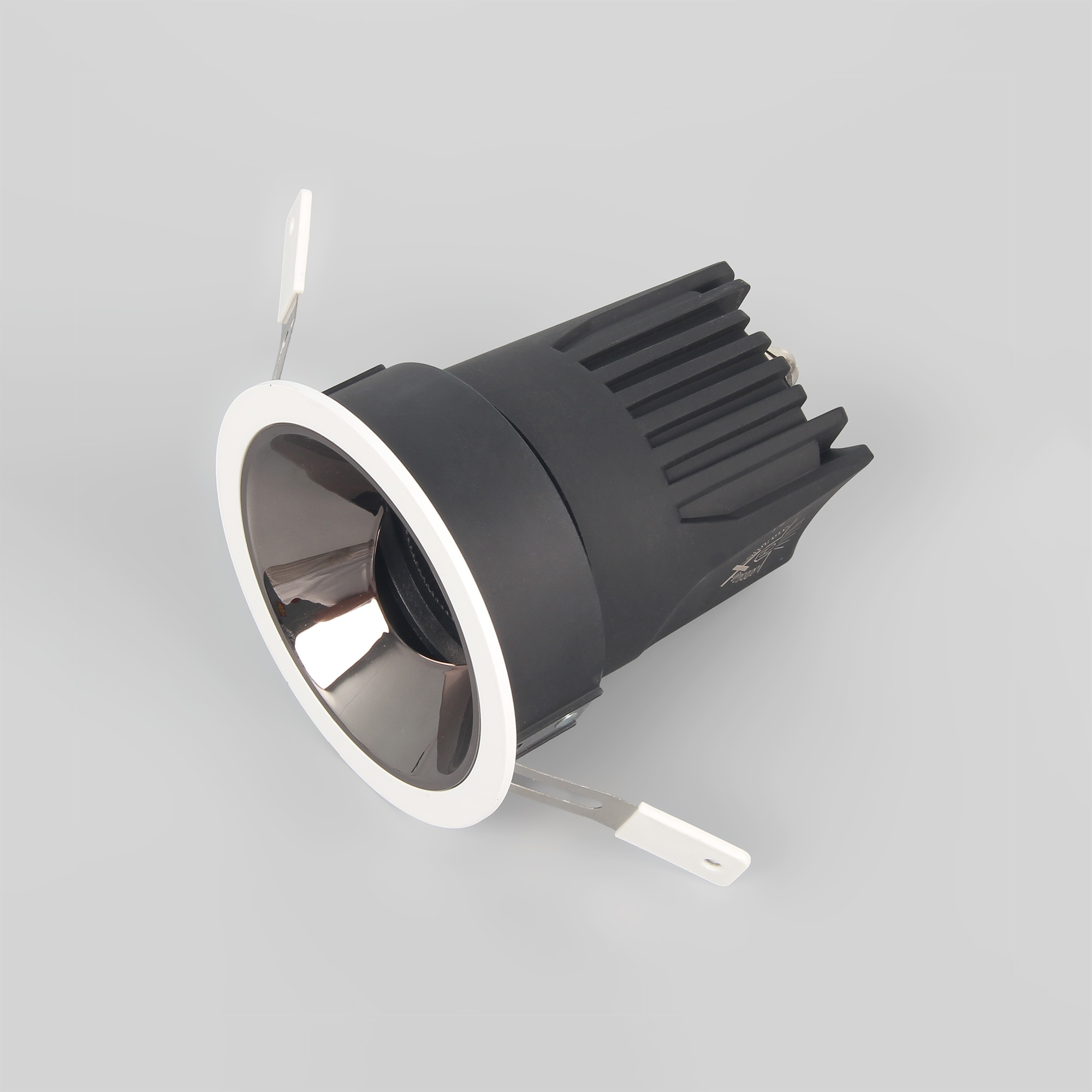

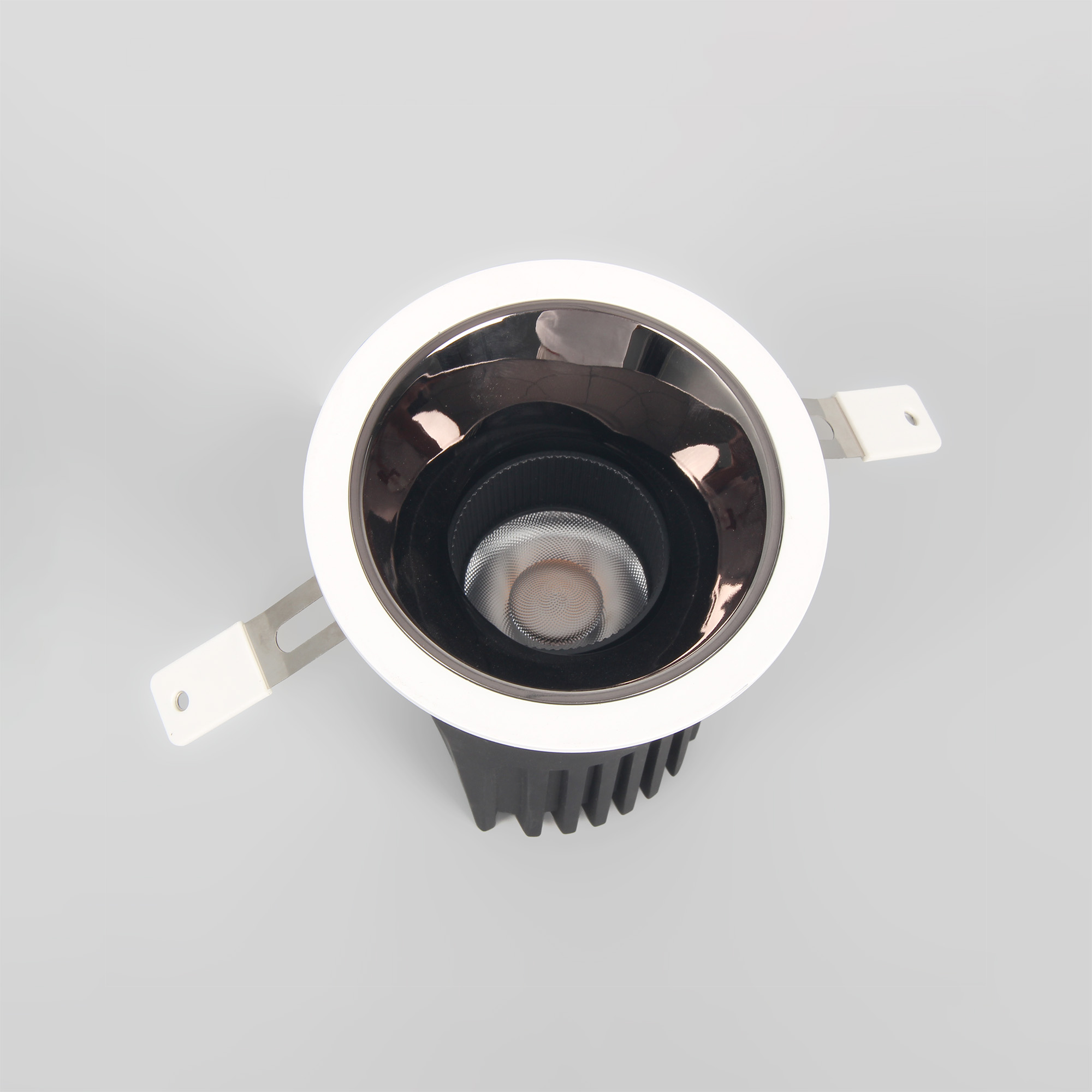

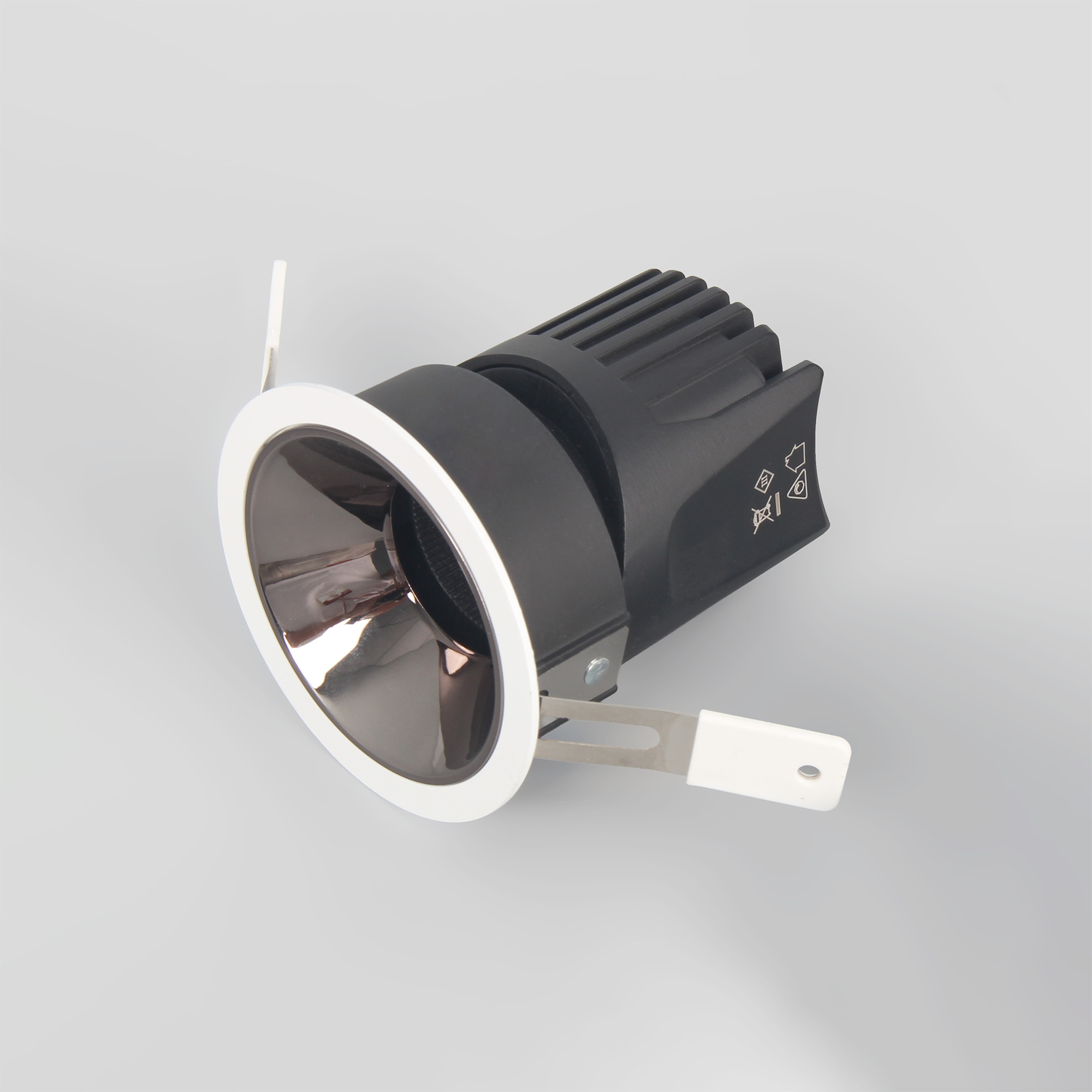

NRP-ORDL0103 Series
POWER (WATT)
9.0/15.0/24.0
IP RATING
IP65
CCT
3000K
BEAM ANGLE
24°/36°/50°
Ra
90
Technical Specifications Basic Parameters
Model No
NRP-ORDL0103-9-30K-WH-24D/NRP-ORDL0103-9-30K-WH-36D/NRP-ORDL0103-9-30K-WH-50D/NRP-ORDL0103-15-30K-WH-24D/NRP-ORDL0103-15-30K-WH-36D/NRP-ORDL0103-15-30K-WH-50D/NRP-ORDL0103-24-30K-WH-24D/NRP-ORDL0103-24-30K-WH-36D/NRP-ORDL0103-24-30K-WH-50D
Category
LED Downlight
Installation Methods
Recessed
Classes of Electrical Protection
Class II
IP Rating
IP65
ta
45°C
Input Voltage
AC220-240V
Frequency
Hz
Input Current
Cap Type
Lamp Type
Type of Chips
COB
Watt
9.0/15.0/24.0
lm/w
80.0/90.0/74.0
Useful Lumen
720.0/810.0/1110.0/1776.0
CCT
3000K
Beam Angle
24°/36°/50°
Ra
90
PF
0.9
DF
0.7
Body Color
White
Product Main Material
PC
Dimming or not
Non-Adjustable Light
Cut hole (mm)
Φ55/Φ75/Φ95
Guarantee
5
Directionality
Product Size (mm)
Φ64*72.5/Φ85*92/Φ106.5*122
Energy efficiency QR included
Model Variants 4 beam options
| Item Code | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Input Current | Cap Type | Lamp Type | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NRP-ORDL0103-9-30K-WH-24D | LED Downlight | Recessed | Class II | IP65 | 45°C | AC220-240V | Hz | N/A | N/A | N/A | COB | 9.0 | 80.0 | 720.0 | 3000K | 24° | 90 | 0.9 | 0.7 | White | PC | Non-Adjustable Light | Φ55 | 5 | Φ64*72.5 | |
| NRP-ORDL0103-9-30K-WH-36D | LED Downlight | Recessed | Class II | IP65 | 45°C | AC220-240V | Hz | N/A | N/A | N/A | COB | 9.0 | 90.0 | 810.0 | 3000K | 36° | 90 | 0.9 | 0.7 | White | PC | Non-Adjustable Light | Φ55 | 5 | Φ64*72.5 | |
| NRP-ORDL0103-9-30K-WH-50D | LED Downlight | Recessed | Class II | IP65 | 45°C | AC220-240V | Hz | N/A | N/A | N/A | COB | 9.0 | 90.0 | 810.0 | 3000K | 50° | 90 | 0.9 | 0.7 | White | PC | Non-Adjustable Light | Φ55 | 5 | Φ64*72.5 | |
| NRP-ORDL0103-15-30K-WH-24D | LED Downlight | Recessed | Class II | IP65 | 45°C | AC220-240V | Hz | N/A | N/A | N/A | COB | 15.0 | 74.0 | 1110.0 | 3000K | 24° | 90 | 0.9 | 0.7 | White | PC | Non-Adjustable Light | Φ75 | 5 | Φ85*92 | |
| NRP-ORDL0103-15-30K-WH-36D | LED Downlight | Recessed | Class II | IP65 | 45°C | AC220-240V | Hz | N/A | N/A | N/A | COB | 15.0 | 74.0 | 1110.0 | 3000K | 36° | 90 | 0.9 | 0.7 | White | PC | Non-Adjustable Light | Φ75 | 5 | Φ85*92 | |
| NRP-ORDL0103-15-30K-WH-50D | LED Downlight | Recessed | Class II | IP65 | 45°C | AC220-240V | Hz | N/A | N/A | N/A | COB | 15.0 | 74.0 | 1110.0 | 3000K | 50° | 90 | 0.9 | 0.7 | White | PC | Non-Adjustable Light | Φ75 | 5 | Φ85*92 | |
| NRP-ORDL0103-24-30K-WH-24D | LED Downlight | Recessed | Class II | IP65 | 45°C | AC220-240V | Hz | N/A | N/A | N/A | COB | 24.0 | 74.0 | 1776.0 | 3000K | 24° | 90 | 0.9 | 0.7 | White | PC | Non-Adjustable Light | Φ95 | 5 | Φ106.5*122 | |
| NRP-ORDL0103-24-30K-WH-36D | LED Downlight | Recessed | Class II | IP65 | 45°C | AC220-240V | Hz | N/A | N/A | N/A | COB | 24.0 | 74.0 | 1776.0 | 3000K | 36° | 90 | 0.9 | 0.7 | White | PC | Non-Adjustable Light | Φ95 | 5 | Φ106.5*122 | |
| NRP-ORDL0103-24-30K-WH-50D | LED Downlight | Recessed | Class II | IP65 | 45°C | AC220-240V | Hz | N/A | N/A | N/A | COB | 24.0 | 74.0 | 1776.0 | 3000K | 50° | 90 | 0.9 | 0.7 | White | PC | Non-Adjustable Light | Φ95 | 5 | Φ106.5*122 |
