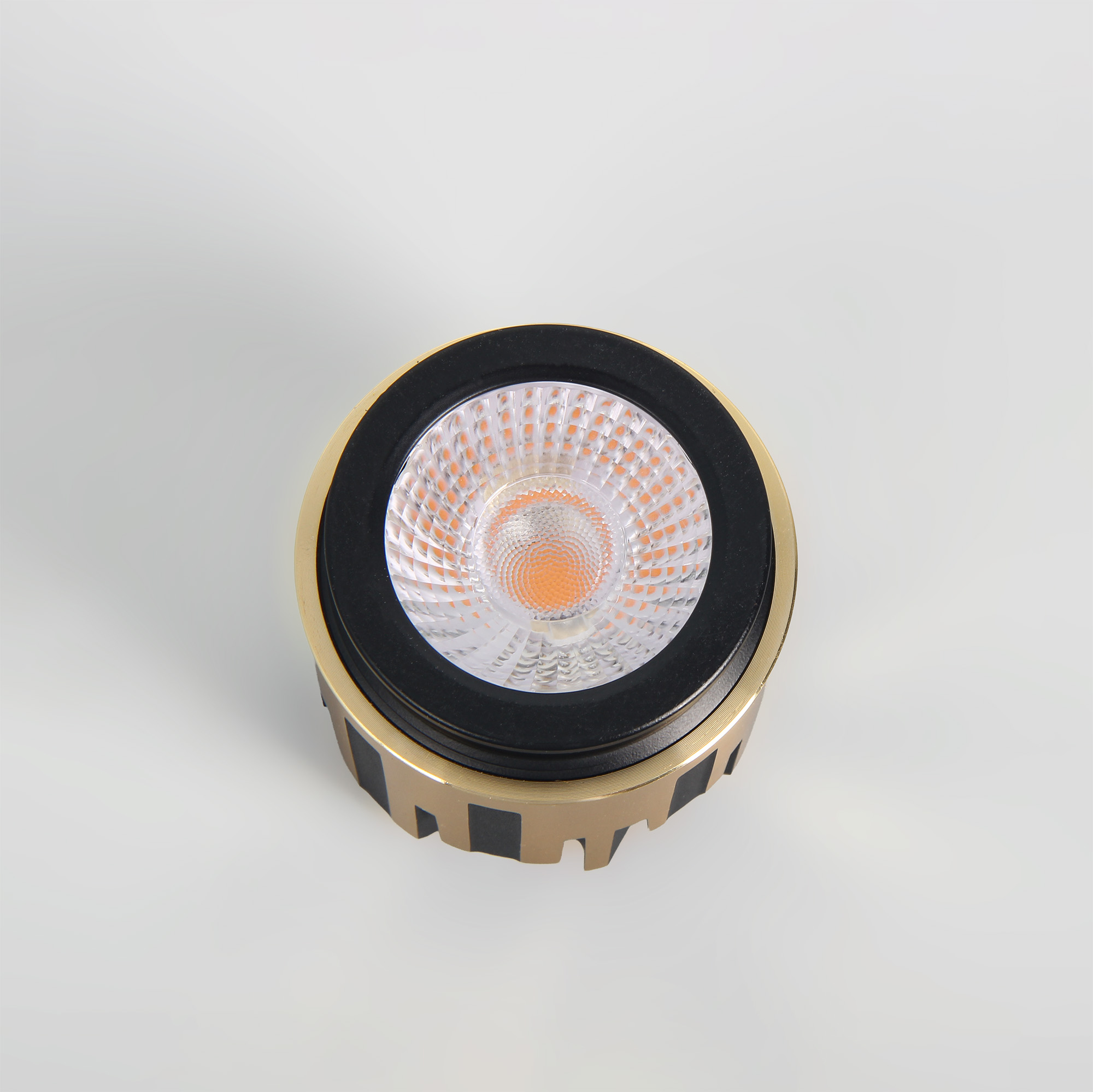

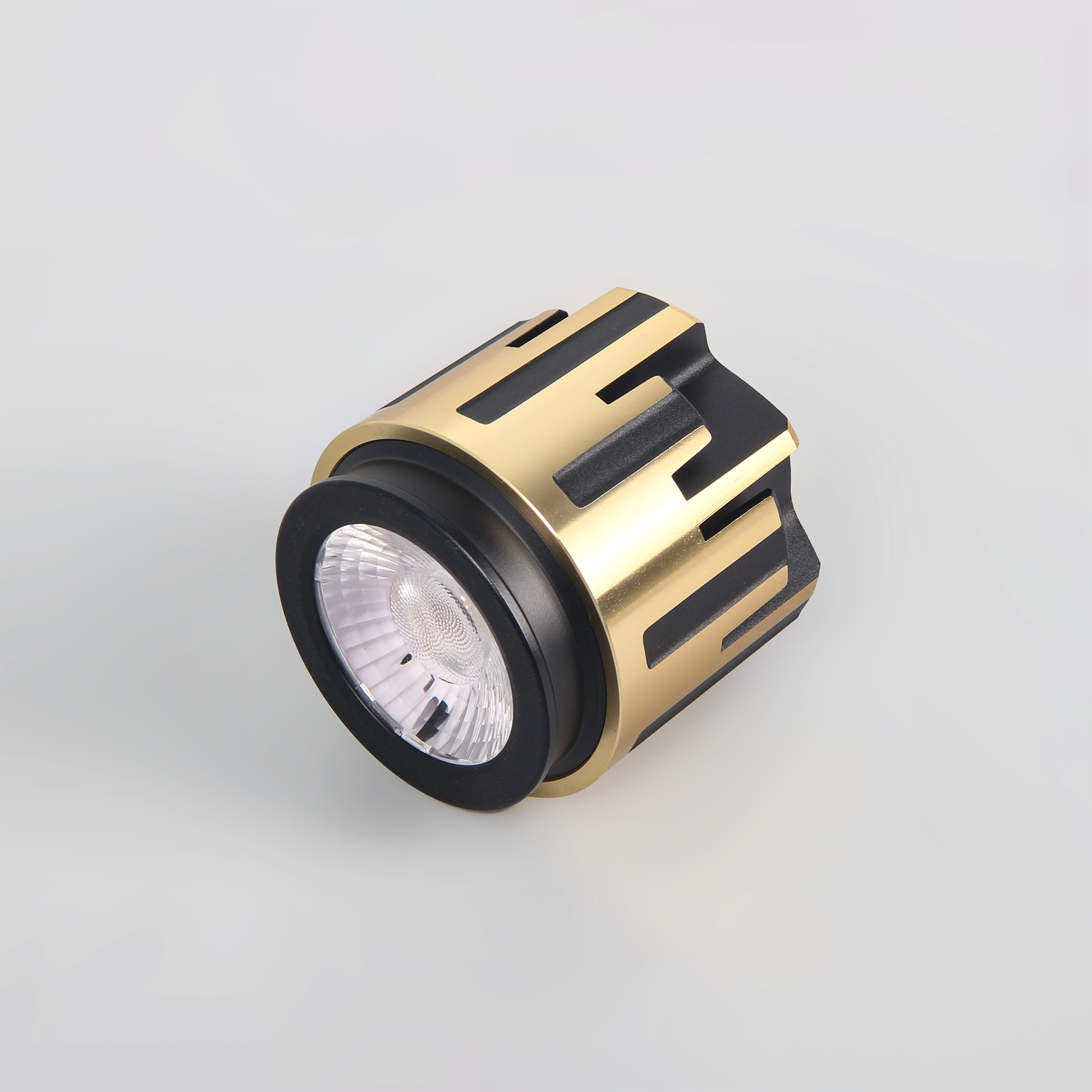

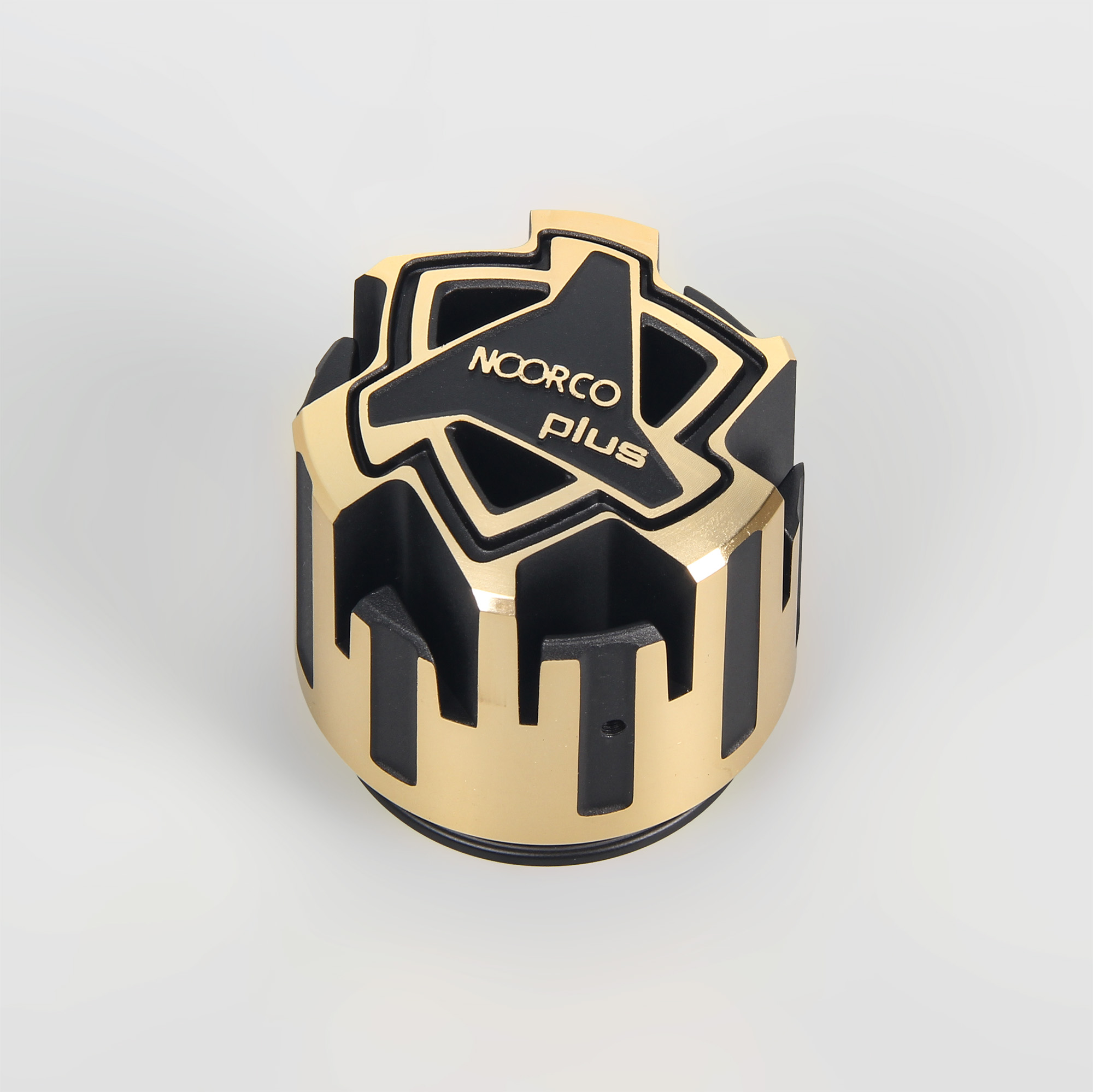

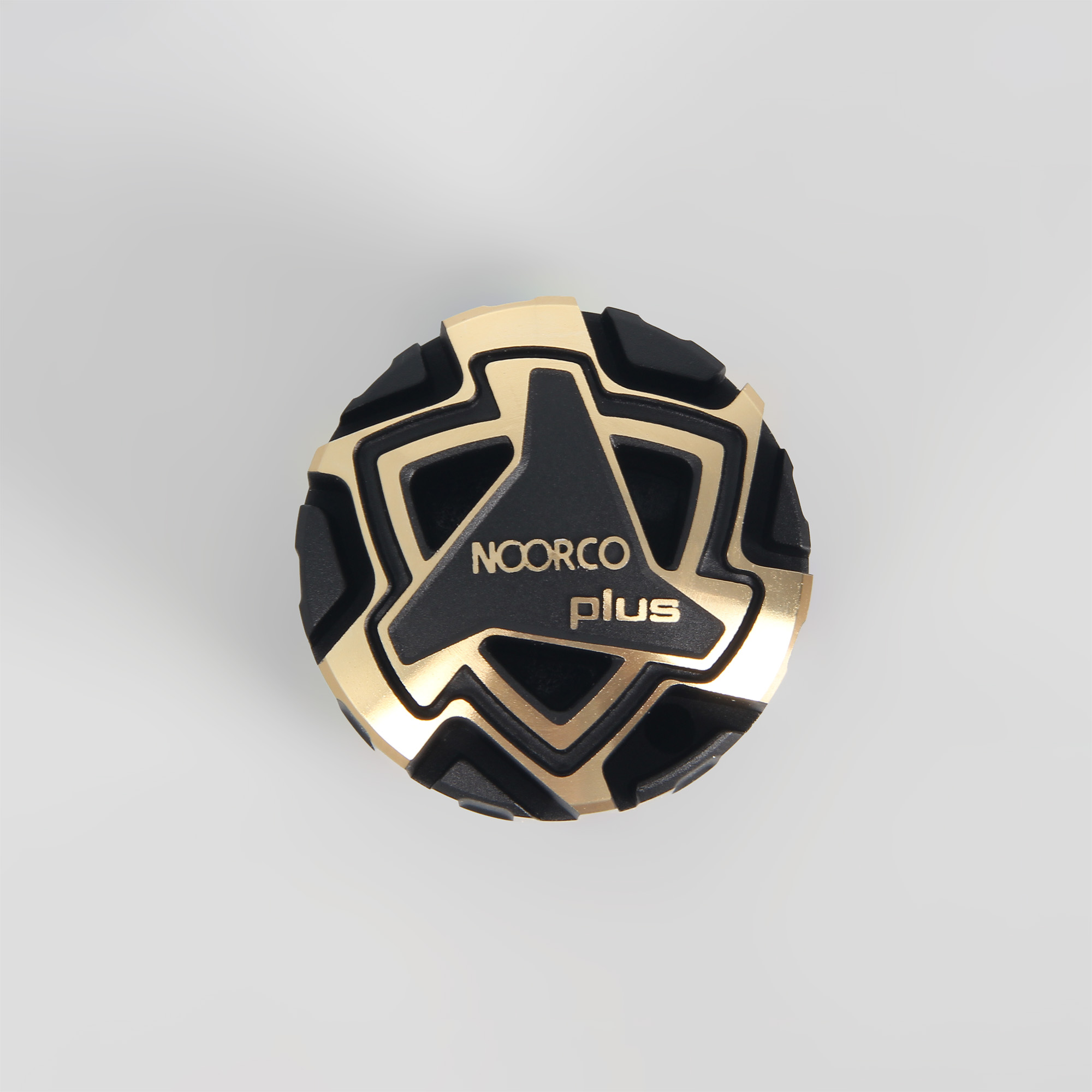

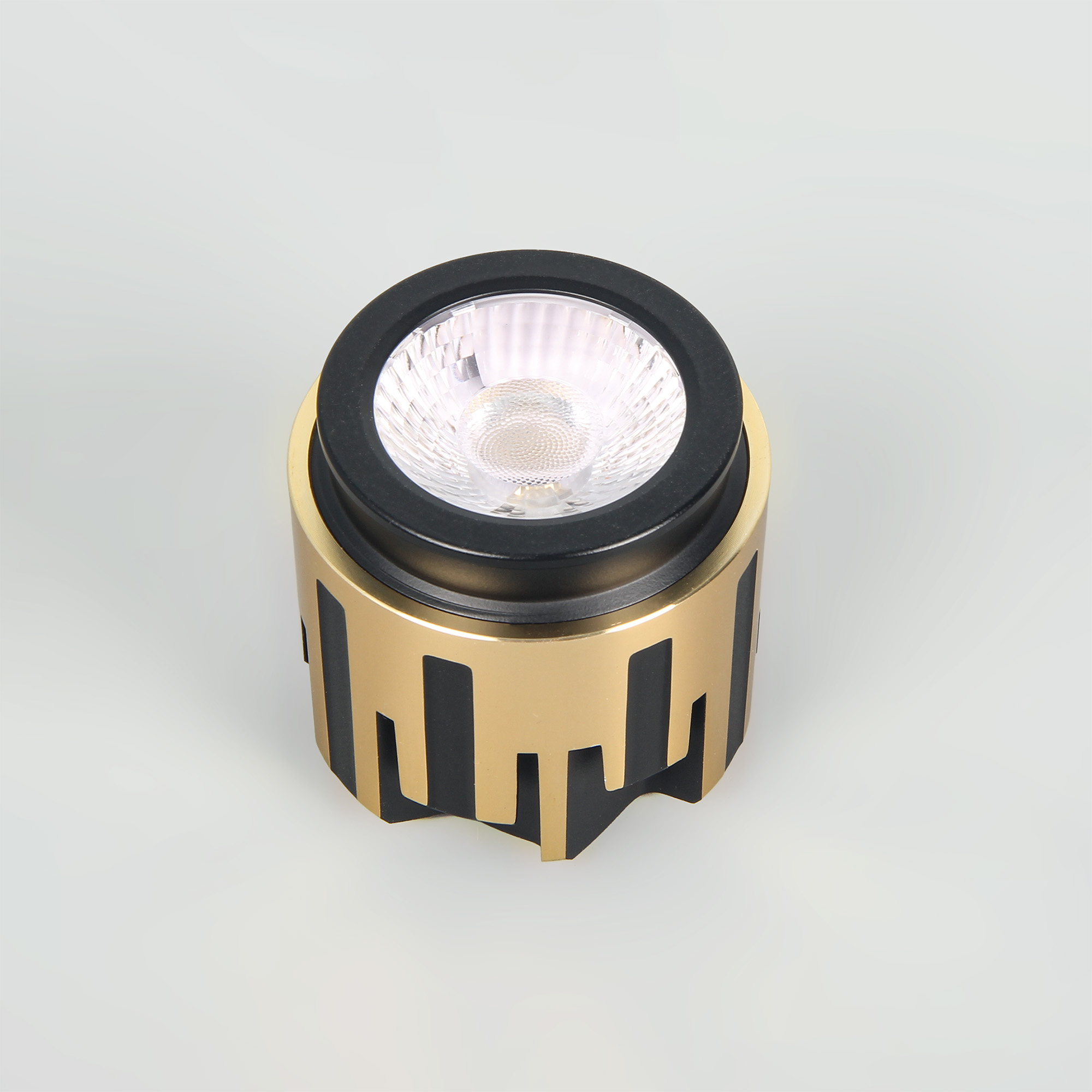

NRP-IRDL0108-13 Series
POWER (WATT)
13
IP RATING
IP20
CCT
3000K
BEAM ANGLE
15°/24°/36°/50°
Ra
90
Technical Specifications Basic Parameters
Model No
NRP-IRDL0108-13
Category
LED Downlight
Installation Methods
Recessed
Classes of Electrical Protection
Class II+III
IP Rating
IP20
ta
40°C
Input Voltage
AC220-240V
Cap Type
N/A
Lamp Type
N/A
Type of Chips
COB
Watt
13W
lm/w
80.0
Useful Lumen
1040lm
CCT
3000K
Beam Angle
15°/24°/36°/50°
SDCM
<6
Ra
90
PF
0.9
DF
0.7
Body Color
Black
Product Main Material
Aluminum+PC
Dimming or not
Non-Adjustable Light
Cut hole (mm)
Guarantee
5
Directionality
Direct
Product Size (mm)
Φ57*59
Energy efficiency QR included
Model Variants 4 beam options
| Item Code | New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Input Current | Cap Type | Lamp Type | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | SDCM | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NRP-IRDL0108-13-30K-BK-15D | NRP-IRDL0108-13-30K-BK-15D | LED Downlight | Recessed | Class II+III | IP20 | 40°C | AC220-240V | Hz | COB | 80.0 | 0 | 3000K | 15° | <6 | 90 | 0.9 | 0.7 | Black | Non-Adjustable Light | 5 | Direct | Φ57*59 | ||||||
| NRP-IRDL0108-13-30K-BK-24D | NRP-IRDL0108-13-30K-BK-24D | LED Downlight | Recessed | Class II+III | IP20 | 40°C | AC220-240V | Hz | COB | 80.0 | 0 | 3000K | 24° | <6 | 90 | 0.9 | 0.7 | Black | Non-Adjustable Light | 5 | Direct | Φ57*59 | ||||||
| NRP-IRDL0108-13-30K-BK-36D | NRP-IRDL0108-13-30K-BK-36D | LED Downlight | Recessed | Class II+III | IP20 | 40°C | AC220-240V | Hz | COB | 80.0 | 0 | 3000K | 36° | <6 | 90 | 0.9 | 0.7 | Black | Non-Adjustable Light | 5 | Direct | Φ57*59 | ||||||
| NRP-IRDL0108-13-30K-BK-50D | NRP-IRDL0108-13-30K-BK-50D | LED Downlight | Recessed | Class II+III | IP20 | 40°C | AC220-240V | Hz | COB | 80.0 | 0 | 3000K | 50° | <6 | 90 | 0.9 | 0.7 | Black | Non-Adjustable Light | 5 | Direct | Φ57*59 |
Resources & Downloads Technical files
