NR-SPL0002
POWER (WATT)
24.0
IP RATING
IP20
CCT
3000K/4000K/6500K
BEAM ANGLE
120°
Ra
85
Technical Specifications Basic Parameters
Model No
NR-SPL0002-24
Category

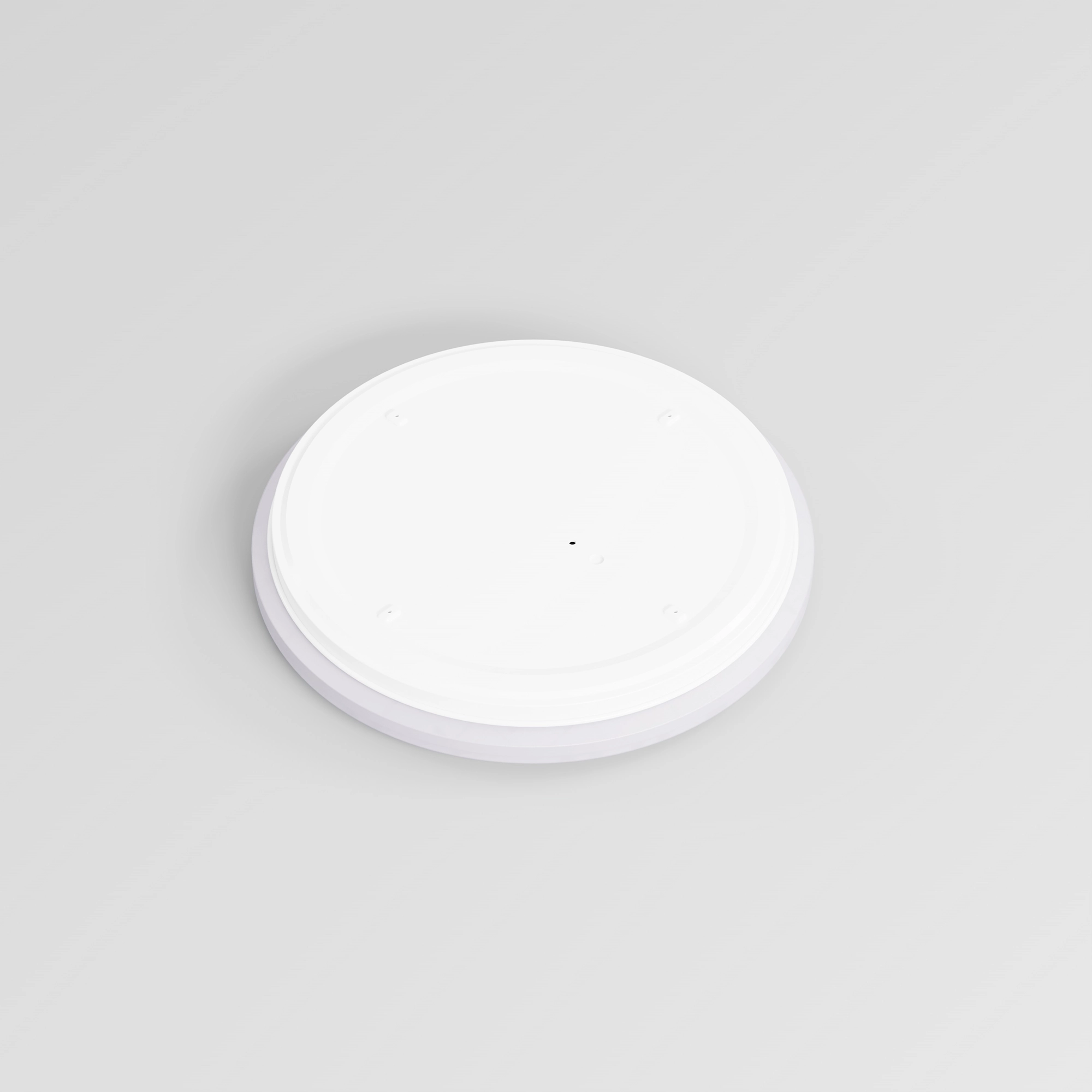

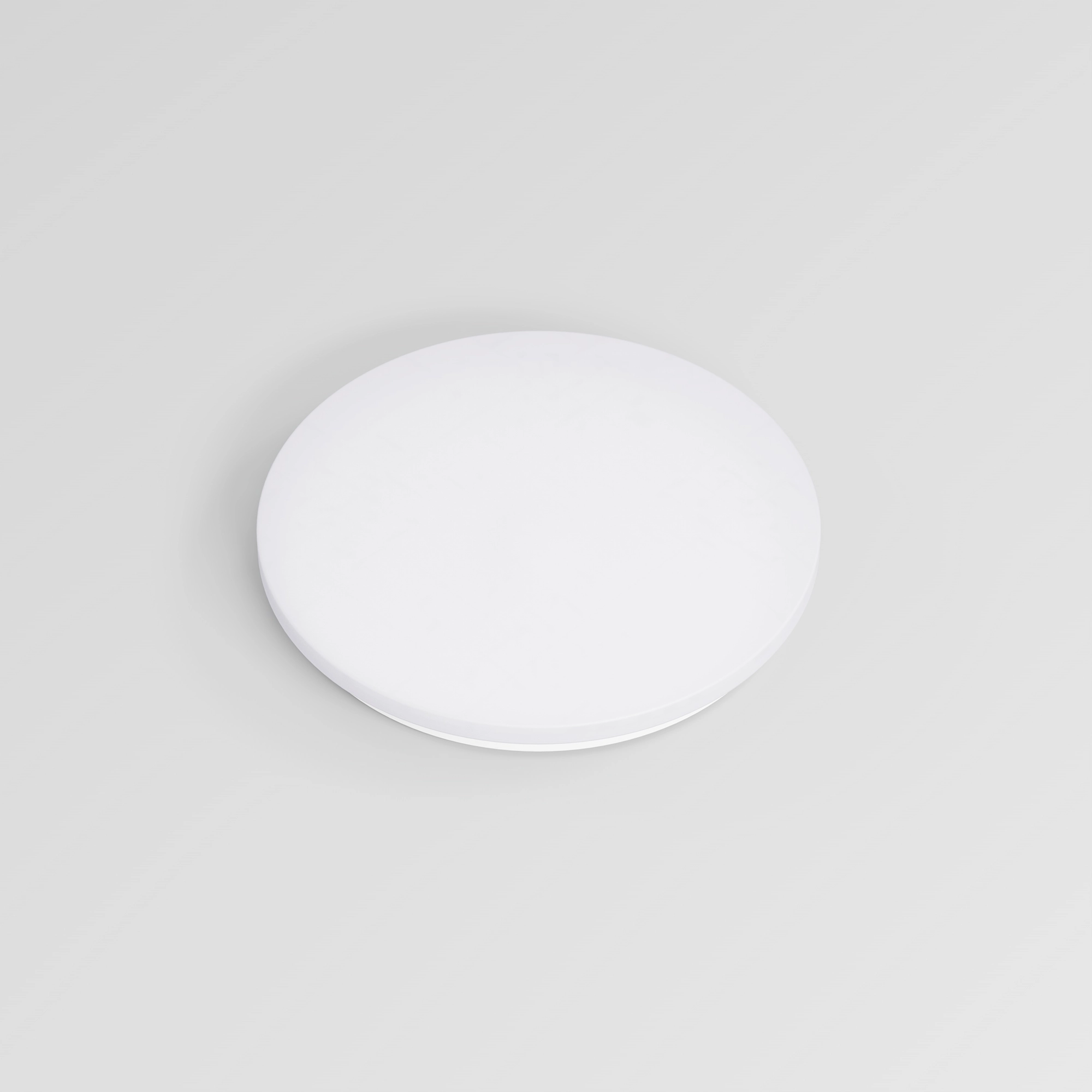

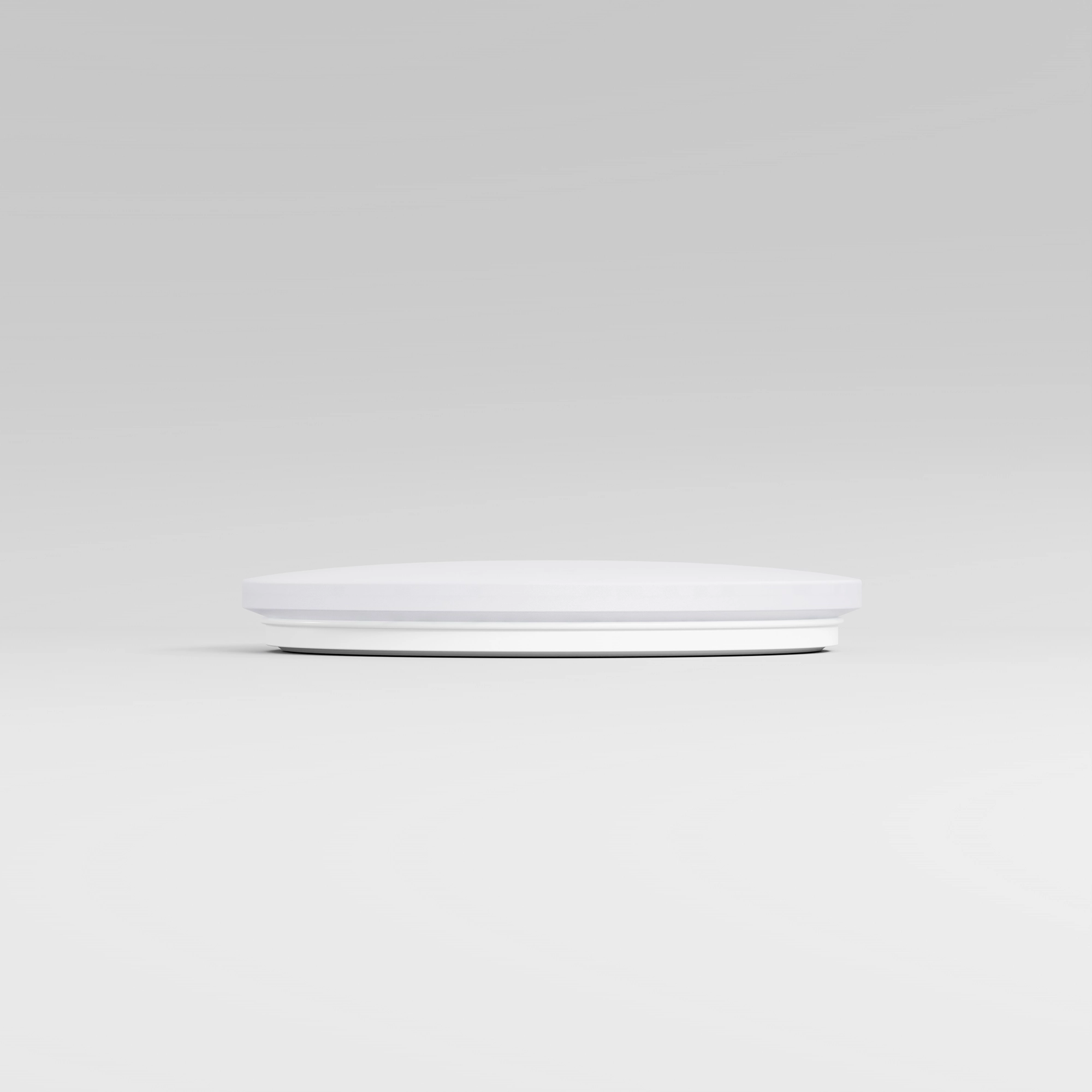

LED Panel Light
Installation Methods
Surface Mounted
Classes of Electrical Protection
Class I
IP Rating
IP20
ta
40°C
Input Voltage
AC220-240V
Frequency
Hz
Input Current
Cap Type
Lamp Type
Type of Chips
SMD
Watt
24.0
lm/w
80.0
Useful Lumen
1920.0
CCT
3000K/4000K/6500K
Beam Angle
120°
SDCM
<6
Ra
85
PF
0.7
DF
0.7
Body Color
White
Product Main Material
PC
Dimming or not
Non-dimmable
Cut hole (mm)
Guarantee
3
Directionality
Indirect
Product Size (mm)
Φ380*60
Energy efficiency QR included
Model Variants 4 beam options
| New Model No | Category | Installation Methods | Classes of Electrical Protection | IP Rating | ta | Input Voltage | Frequency | Input Current | Cap Type | Lamp Type | Type of Chips | Watt | lm/w | Useful Lumen | CCT | Beam Angle | SDCM | Ra | PF | DF | Body Color | Product Main Material | Dimming or not | Cut hole (mm) | Guarantee | Directionality | Product Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NR-SPL0002-24-30K-WH-120D | LED Panel Light | Surface Mounted | Class I | IP20 | 40°C | AC220-240V | Hz | N/A | N/A | N/A | SMD | 24.0 | 80.0 | 1920.0 | 3000K | 120° | <6 | 85 | 0.7 | 0.7 | White | PC | Non-dimmable | N/A | 3 | Indirect | Φ380*60 |
| NR-SPL0002-24-40K-WH-120D | LED Panel Light | Surface Mounted | Class I | IP20 | 40°C | AC220-240V | Hz | N/A | N/A | N/A | SMD | 24.0 | 80.0 | 1920.0 | 4000K | 120° | <6 | 85 | 0.7 | 0.7 | White | PC | Non-dimmable | N/A | 3 | Indirect | Φ380*60 |
| NR-SPL0002-24-65K-WH-120D | LED Panel Light | Surface Mounted | Class I | IP20 | 40°C | AC220-240V | Hz | N/A | N/A | N/A | SMD | 24.0 | 80.0 | 1920.0 | 6500K | 120° | <6 | 85 | 0.7 | 0.7 | White | PC | Non-dimmable | N/A | 3 | Indirect | Φ380*60 |
