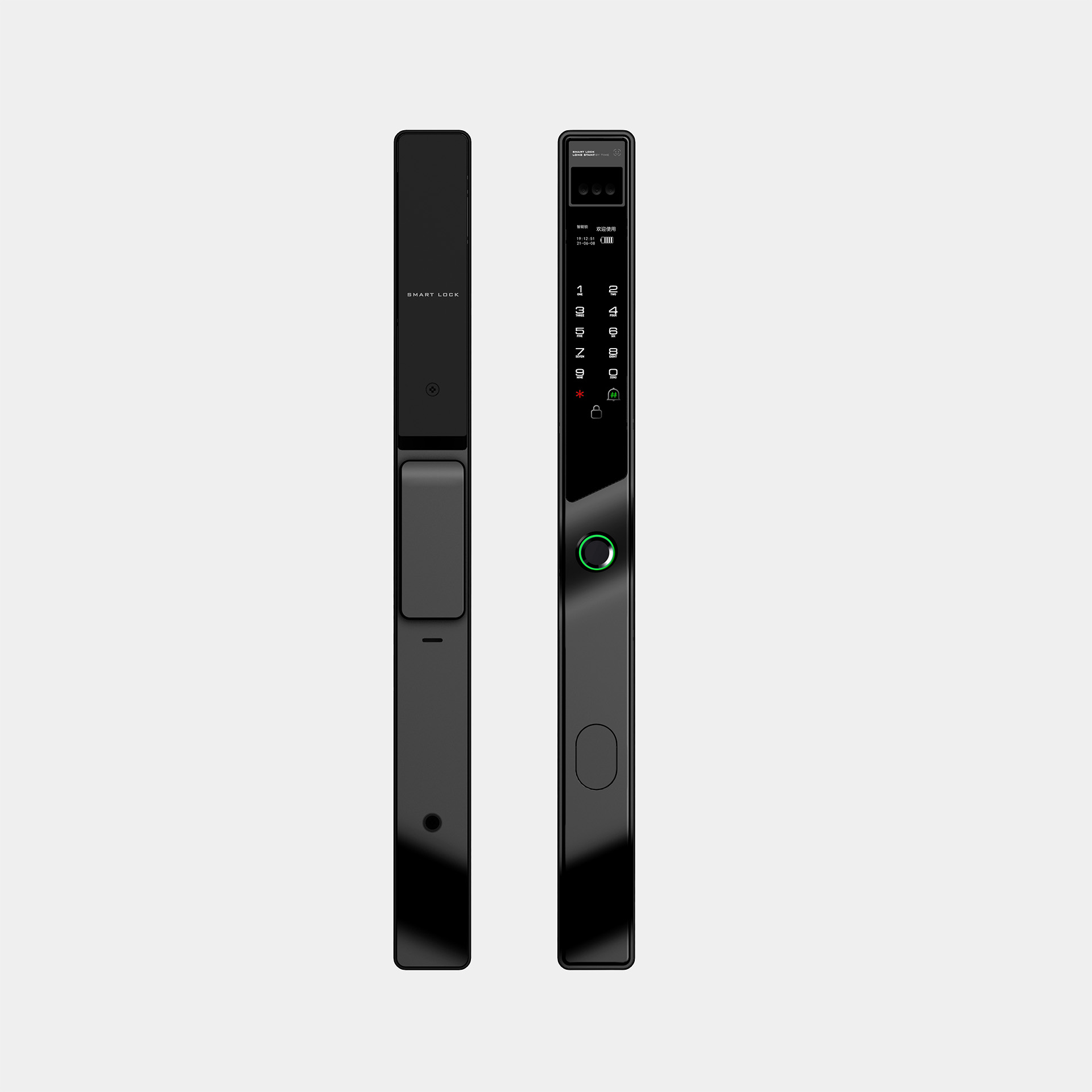

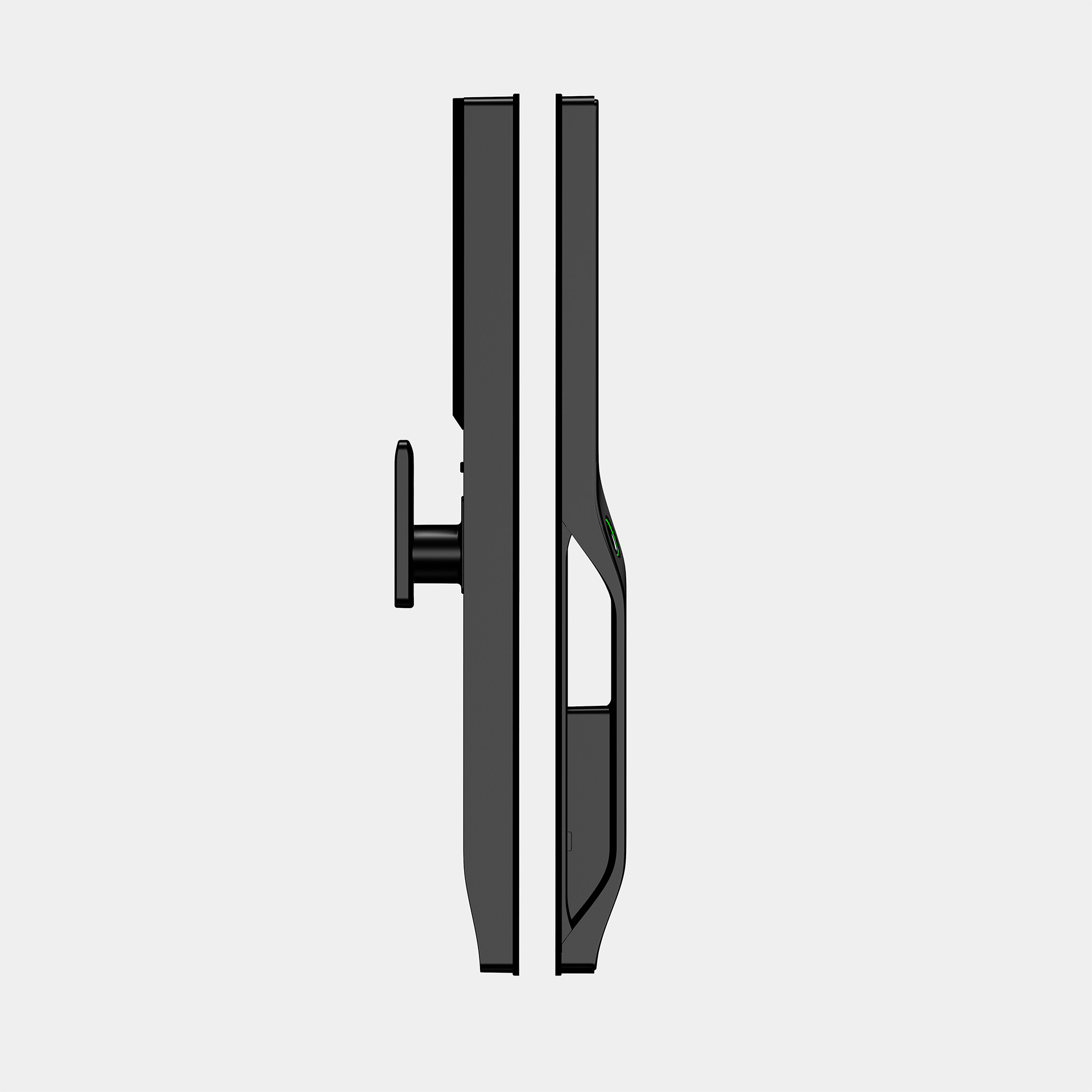

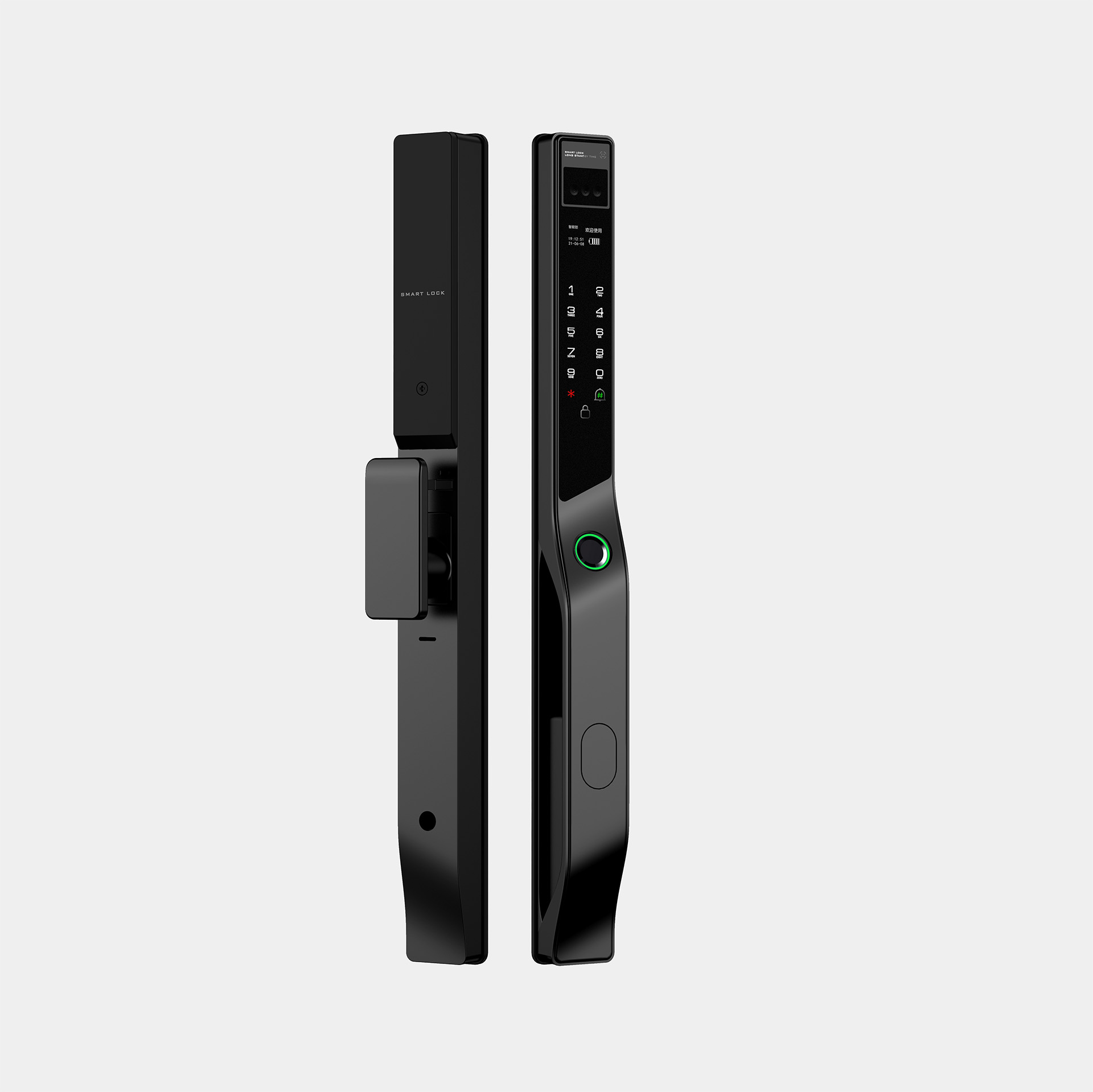

HU-DL106-W-BK
Model NO
HU-DL106-W-BK
Power
DC7.4V 3200mAh
Low Power Alarm
<6.9V
Emergency Supply
5V (TYPEC USB)
Quiescent Current
<110uA (Excluding Camera)
Keypad
Capacitive touch 13 keys (0-9,*#,lock door key)
Backlight
White
IP Rating
IP56
Color
Black
User Capacity
250
Face&Palm Capacity
50
Card Type
Mifare/NFC
Card Reading Distance
0-40MM
Human body Sensing
Radar Detection
Human Body Detection Distance
Adjustable from 0.8 m to 1.5m
Facial Recognition Range
Vertical installation angle ≤ 15° (for heights 1.2m - 2.0m)
Anti Static Ability
Contact discharge +8kV, Air discharge +15kV
Front Display
0.96 OLED
Front Speaker
8R1W
Back Speaker
8R1W
